Kia Picanto JA: Cooling System / Reservoir Tank

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Engine Mechanical System / Cooling System / Reservoir Tank

Components and components location

Components

1. Reservoir tank
2. Reservoir hose & pipe

3. Turbo charger water drain hose
4. Water return hose

Repair procedures

Removal and Installation

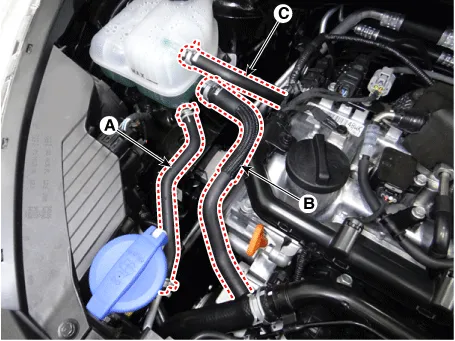

1.	Disconnect the reservoir hose (A), and then drain the coolant from the reservoir tank.

2.	Disconnect the water return hose (B) and turbo charger water drain hose (C).

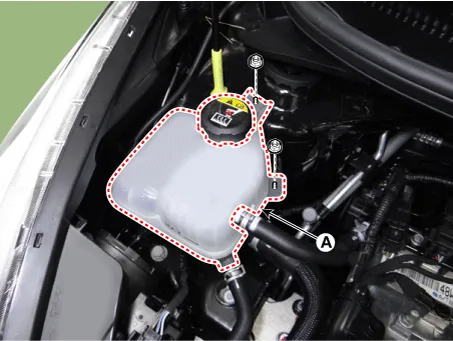

Remove the reservoir tank (B).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 Ib·ft)

4.	Install in the reverse order of removal.

5.	Fill with engine coolant.

Coolant
