Kia Picanto (JA): Suspension System / Rear Suspension System
Components and components location
| Components |
| [Disc type] |
| 1. Torsion beam 2. Brake disc | 3. Brake caliper |
| [Drum type] |

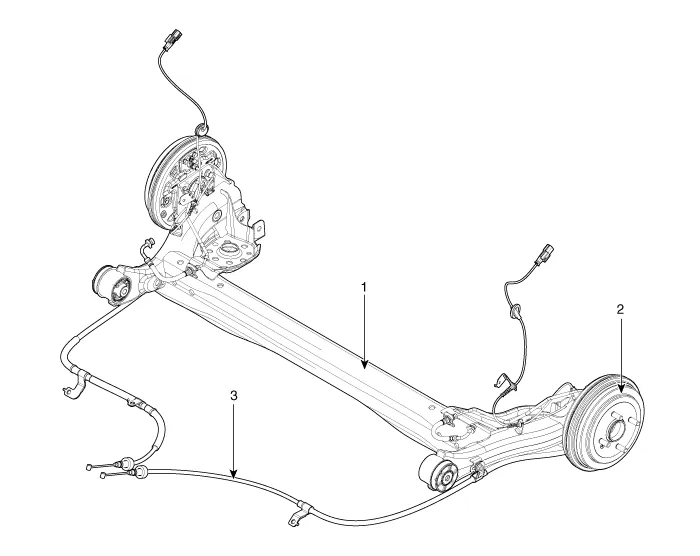

| 1. Torsion beam axle 2. Drum brake | 3. Parking brake cable |
Repair procedures Removal 1.Remove the universal joint bolt (A). Tightening torque : 32.4 - 37.3 N·m (3.3 - 3.8 kgf·m, 23.9 - 27.
Components and components location Components 1. Cover 2. Lock nut 3. Retainer 4. Upper bushing 5. Collar 6. Lower bushing 7. Upper cover 8. Bumper stopper 9.
