Kia Picanto (JA): Body (Interior and Exterior) / Quarter Fixed Glass

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Quarter Fixed Glass

Components and components location

Component Location

1. Quarter fixed glass


Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.
Separate the rear door inside handle (A) after loosening the mounting screw.

3.

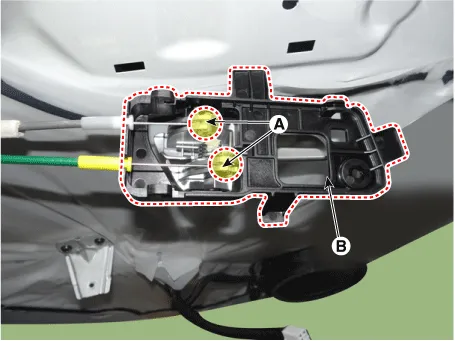

Remove the front door inside handle (B) after disconnecting the cable (A).

4.
Remove the door pull handle mounting support (A) after loosening the screws.

5.

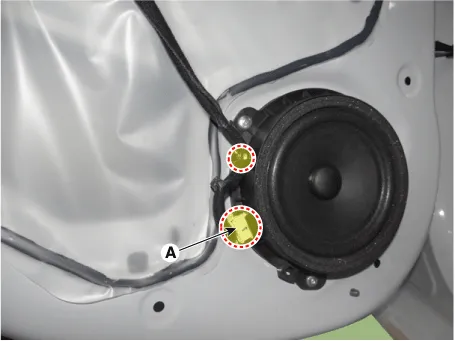

Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.

6.
Remove the front door trim seal (A).

7.
Remove the front door belt inside weather strip (A).

8.

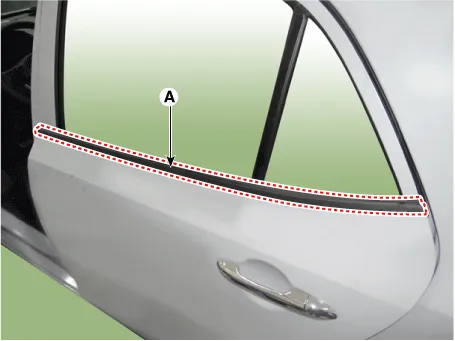

Remove the front door belt outside weather strip (A).

9.
Separate the door side weatherstrip (A).

10.
Remove the quarter fixed glass & molding (A) after loosening the mounting screw and bolts.

11.
Remove the quarter fixed glass (A) from the molding.

12.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Make sure the door locks/unlocks and opens/closes properly.
•
Replace any damaged clips.
