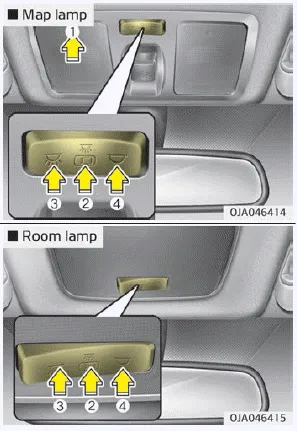

• (1) : Press the lamps to turn the front map lamps on and off.
•
(2) :
- The map lamp and
room lamp comes on
when a door is
opened. The lamps go
out after approximately
30 seconds.
- The map lamp and
room lamp comes on
for approximately
30 seconds when
doors are unlocked
with a transmitter or
smart key as long as
the doors are not
opened.
- The map lamp and
room lamp will stay
on for approximately
20 minutes if a door
is opened with the ignition
switch in the
ACC or LOCK/OFF position.
- The map lamp and
room lamp will stay
on continuously if the
door is opened with
the ignition switch in
the ON position.
- The map lamp and
room lamp will go out
immediately if the ignition
switch is
changed to the ON
position or all doors
are locked.
- To turn off the DOOR
mode, press the
DOOR button (2) once
again (not pressed).
NOTICE
The DOOR mode and ROOM mode can not be selected at a time.
•
(3) :
Press this switch to
turn the front map
lamps on.
•
(4) : Press this switch to
turn the front map
lamps off.
CAUTION Do not use the interior lights for extended periods when the engine is not running. It may cause battery discharge. WARNING Do not use the interior lights when driving in the dark.
The luggage room lamp comes on when the tailgate is opened. CAUTION The luggage room lamp comes on as long as the tailgate opens. To prevent unnecessary charging system drain, close the tailgate securely after using the luggage room.
