Components and components location

Component Location

1. Fuel filler door


Repair procedures

Replacement

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
1.
Open the fuel filler door and then filler door cap.
2.

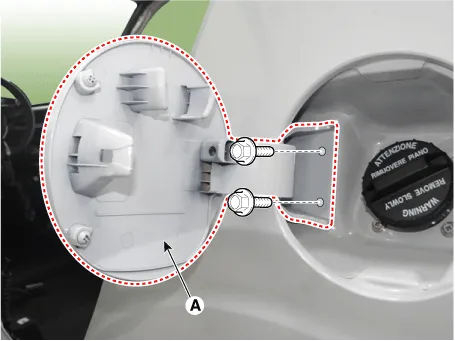

Remove the fuel filler door housing (A) after loosening the mounting bolts.

3.
Install in the reverse order of removal.

•
Make sure the fuel filler door locks/unlocks and opens/closes properly.
•
Replace any damaged clips.
