Kia Picanto JA: Front Seat / Front Seat Frame Assembly

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly

Components and components location
Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly

Repair procedures
Replacement

•
Put on gloves to protect your hands.
•
Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat back cover.
(Refer to Front Seat - "Front Seat Back Cover")
2.
Remove the front seat cushion cover.
(Refer to Front Seat - "Front Seat Cushion Cover")
3.

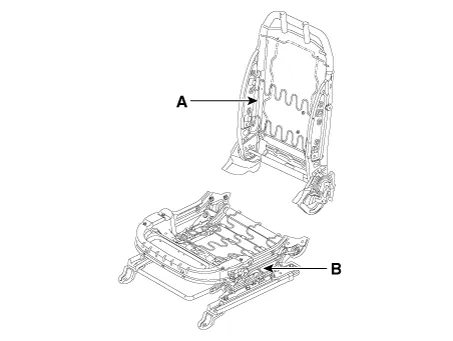

After loosening the mounting bolts, disconnect the front seat back frame assembly (A) and front seat cushion frame assembly (B).
Tightening torque :
44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)

4.
Install in the reverse order of removal.
