Kia Picanto (JA): Body Side Molding / Front Mud Guard

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Body Side Molding / Front Mud Guard

Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

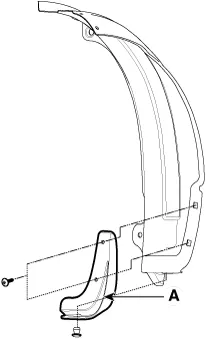

Remove the front mud guard (A), after loosening the mounting screws.

2.
Install in the reverse order of removal.

Replace any damaged clips.
