Kia Picanto JA: Fuel Delivery System / Filler-Neck Assembly

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Engine Control / Fuel System / Fuel Delivery System / Filler-Neck Assembly

Repair procedures

Removal

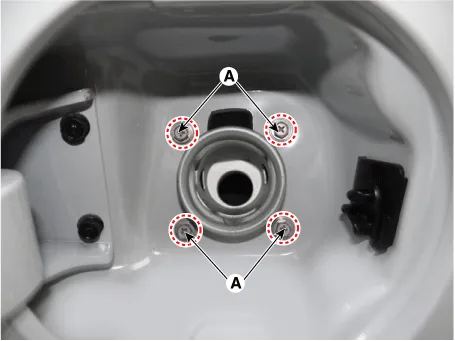

Open the fuel filler door and then remove the filler-neck mounting bolts (A).

Filler-neck assembly mounting bolt:

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

2.	Left the vehice.

3.	Remove the rear-LH wheel, tire, and the inner wheel house.

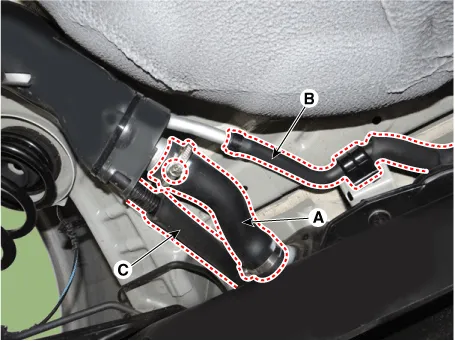

4.	Disconnect the fuel filler hose (A), the leveling hose (B) and the ventilation hose (C).

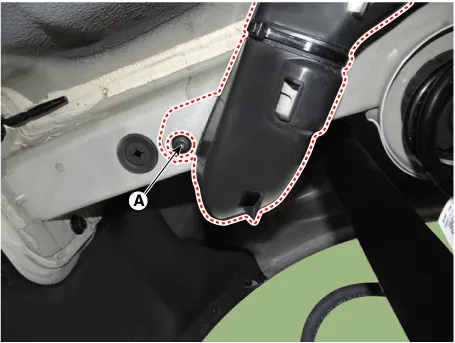

Remove the filler-neck assembly from the vehicle after removing the bracket intallation bolt (A).

Filler-neck assembly bracket mounting bolt:

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Installation

1.	Installation is reverse of removal.
