Kia Picanto (JA): Engine Control System / Electric Waste Gate Actuator (EWGA)

Specifications

Specification
Motor
Item
Specification
Max Current (A)
< 6.0
Coil Resistance (Ω)
2.4 ± 0.36
Supply Voltage (V)
13.5
Supply Voltage Range (V)
9 - 16
Operating Frequency (kHz)
0.9 - 1.1

Sensor
Item
Specification
Supply Voltage (V)
4 - 6

Description and operation

Desrcription

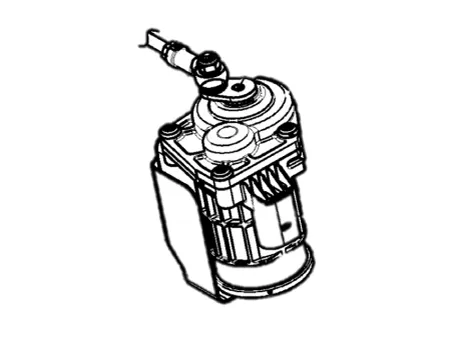

Installed on the turbocharger, the Electric WGT Control Actuator operates the vane in the Waste Gate Turbocharger (WGT) and regulates the amount of compressed air by using the ECM's PWM signal. This actuator consists of a DC motor which actuates the vane, a 2-step gear which increases torque of the DC motor, a position sensor which detects status of the vane, and an electric control unit which drives the DC motor.

Schematic diagrams

Circuit Diagram

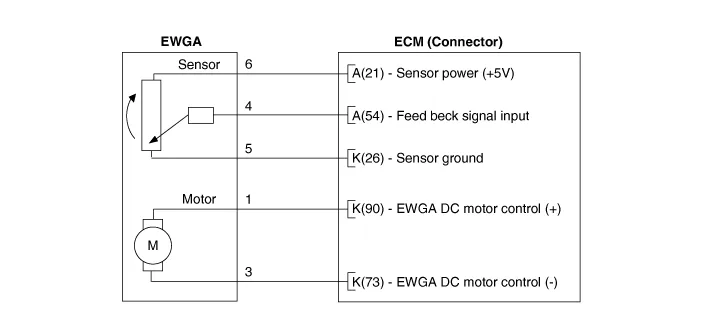

[A/T]

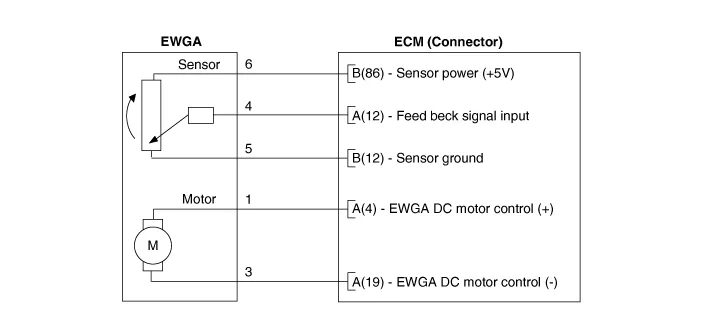

[M/T]
