Kia Picanto (JA): Evaporative Emission Control System / Canister

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Emission Control System / Evaporative Emission Control System / Canister

Repair procedures

Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Remove the fuel tank assembly.
(Refer to Fuel System - "Fuel Tank")
3.

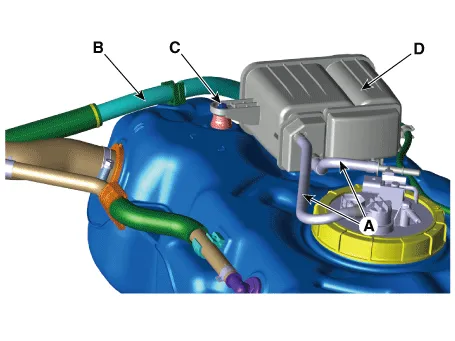

Disconnect the vapor (A) and ventilation hose (B).
4.
Remove the mounting bolt (C) and then remove the canister (D).
Canister assembly mounting bolt :
0.3 - 0.6 N·m (0.3 - 0.6 kgf·m, 2.2 - 4.3 lb·ft)

Installation
1.
Install in the reverse order of removal.
Inspection
1.
Check for the following items visually.
–
Cracks or leakage of the canister
–
Loose connection, distortion, or damage of the vapor hose/ tube

A: Canister ↔ Fuel Tank
B: Canister ↔ Intake Manifold
C: Canister ↔ Atmosphere
