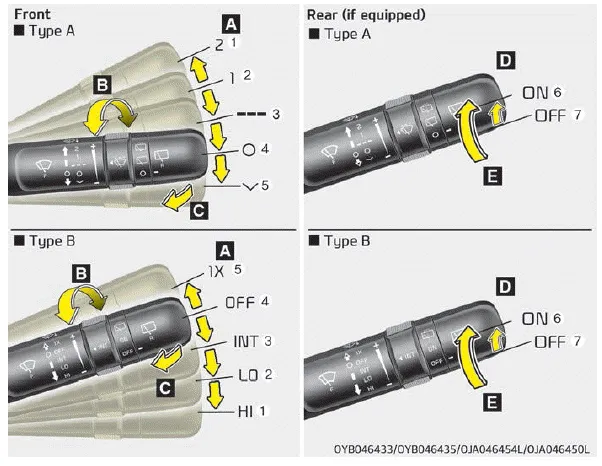

A : Wiper speed control (front)
1. 2/HI – High wiper speed
2. 1/LO – Low wiper speed
3. ---/INT – Intermittent wipe
4. O/OFF – Off
5. /1X – Single wipe
B : Intermittent control wipe time adjustment
C : Wash with brief wipes (front) *
D : Rear wiper/washer control *
6. 1/ON – Intermittent wipe
7. O/OFF – Off
E : Wash with brief wipes (rear)
To adjust the headlight beam level according to the number of the passengers and loading weight in the luggage area, turn the beam leveling switch.
Operates as follows when the ignition switch is turned ON. 1 2/HI : Fast wiper speed 2 1/LO : Normal wiper speed 3 ---/INT : Wiper operates intermittently at the same wiping intervals.
Components and components location Component Location E/R Junction Box Circuit (E/R Junction Block) E/R Junction Box Circuit (E/R Junction Block) Repair procedures Inspection 1. Disconnect the negative (-) battery terminal.
Repair procedures Inspection Self Diagnosis With Scan Tool It will be able to diagnose defects of SMART KEY system with KDS/GDS quickly. KDS/GDS can operates actuator forcefully, input/output value monitoring and self diagnosis. The following three features will be major problem in SMART KEY system.
