Kia Picanto (JA): Cylinder Head Assembly / Vacuum Pump
Repair procedures
| Removal and Installation |
| 1. | Disconnect the battery negative terminal. |
| 2. | Disconnect the wiring connectors and harness clamps and remove the connector brackets around the vacuum pump.
|
| 3. | Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
|

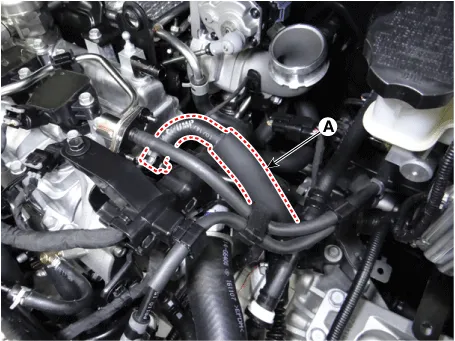

| 4. | Disconnect the brake booster vacuum hose (A).
|
| 5. | Remove the wiring bracket (A) and then remove the vacuum pump (B).
|
| 6. | Install in the reverse order of removal. |
