Kia Picanto JA: Engine Electrical System / Starting System
Description and operation
The
starting system consists of the battery, starter, solenoid switch,
ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T),
ignition lock switch, connection wires and the battery cable.
When the ignition key is turned to the start position, current flows and energizes the starter motor's solenoid coil.
The solenoid plunger and clutch shift lever are activated, and the clutch pinion engages the ring gear.
The contacts close and the starter motor cranks.
In
order to prevent damage caused by excessive rotation of the starter
armature when the engine starts, the clutch pinion gear overruns.

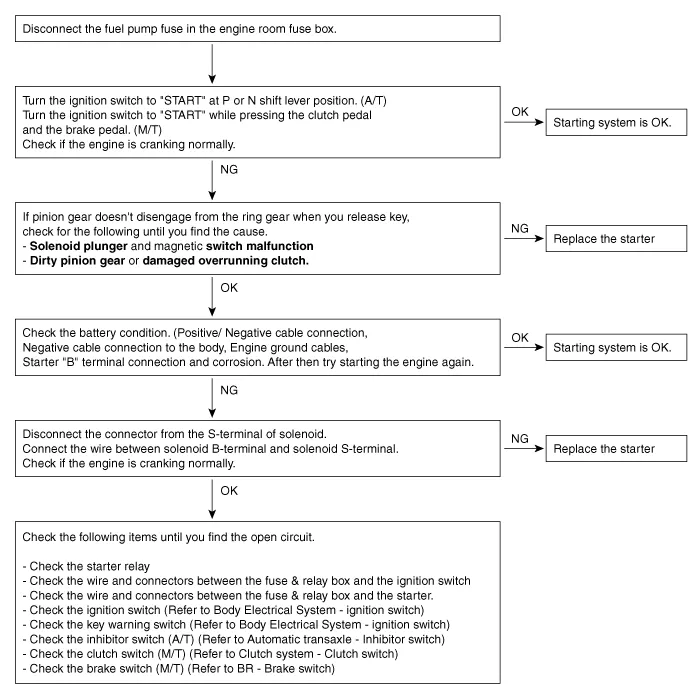

Troubleshooting
Symptom
|
Suspected Area
|
Remedy
|
Engine will not crank
| Battery charge low
| Charge or replace battery
|
Battery cables loose, corroded or worn out
| Repair or replace cables
|
Inhibitor switch [AT Type only]
| Refer to Automatic Transaxle System - "Inhibitor switch"
|
Inhibitor switch [DCT Type only]
| Refer to Daul Clutch Transmission System - "Inhibitor switch"
|
Clutch Switch [MT Type only]
|
Refer to Clutch System - "Clutch Switch"
|
Fuse blown
| Replace fuse
|
Starter motor faulty
| Replace
|
Ignition switch faulty
| Replace
|
Engine cranks slowly
| Battery charge low
| Charge or replace battery
|
Battery cables loose, corroded or worn out
| Repair or replace cables
|
Starter motor faulty
| Replace
|
Starter keeps running
| Starter motor faulty
| Replace
|
Ignition switch
| Replace
|
Starter spins but engine will not crank
| Short in wiring
| Repair or replace wiring
|
Pinion gear teeth broken or starter motor
| Replace
|
Ring gear teeth broken
| Replace fly wheel or torque converter
|
| •
| The battery must be in good condition and fully charged for this troubleshooting. |
|
