Components and components location

Components

Seat Belt Reminder (SBR) Unit

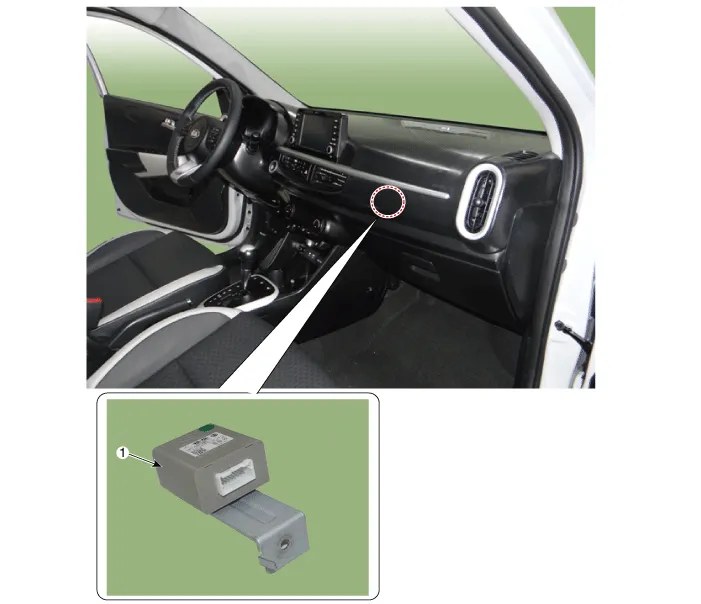

1. Seat Belt Reminder (SBR) Unit

Seat Belt Reminder (SBR) Sensnor

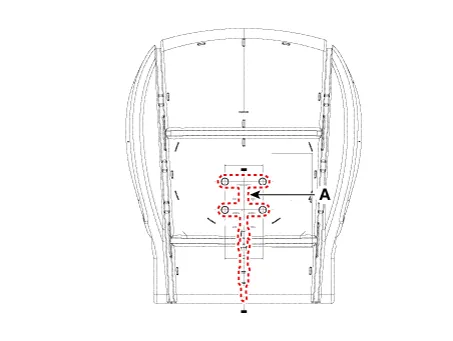

1. Seat Belt Reminder (SBR) Sensnor

Schematic diagrams

Circuit Diaram

Repair procedures

Replacement

Seat Belt Reminder (SBR) Unit

1.	Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.

2.	Remove the glove box housing. (Refer to Body -"Glove Box Housing")

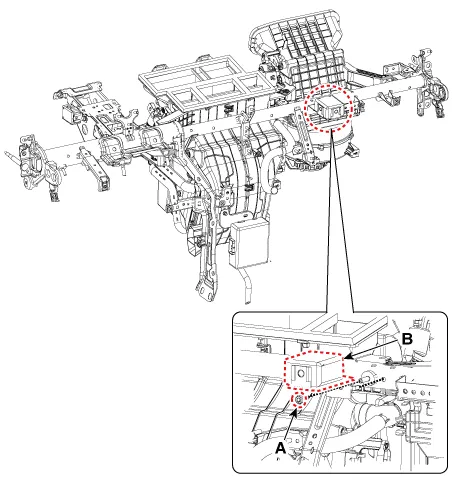

3.	Remove the seat belt reminder unit (B) after loosening the mounting nut (A).

4.	Disconnect the seat belt reminder unit connector (A)

5.	Install in the reverse order of removal.

Seat Belt Reminder (SBR) Sensnor

1.	Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.

2.	Remove the front seat assembly. (Refer to Body - "Front Seat Assembly")

3.	Remove the front seat cushion cover. (Refer to Body - "Front Seat Cushion Cover")

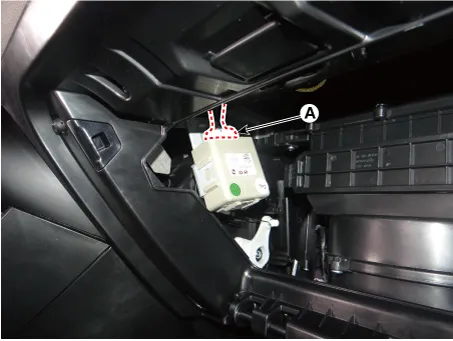

4.	Remove the seat belt reminder sensor (A).

5.	Install in the reverse order of removal.
