Kia Picanto (JA): Body Electrical System / Rear Wiper/Washer
Components and components location

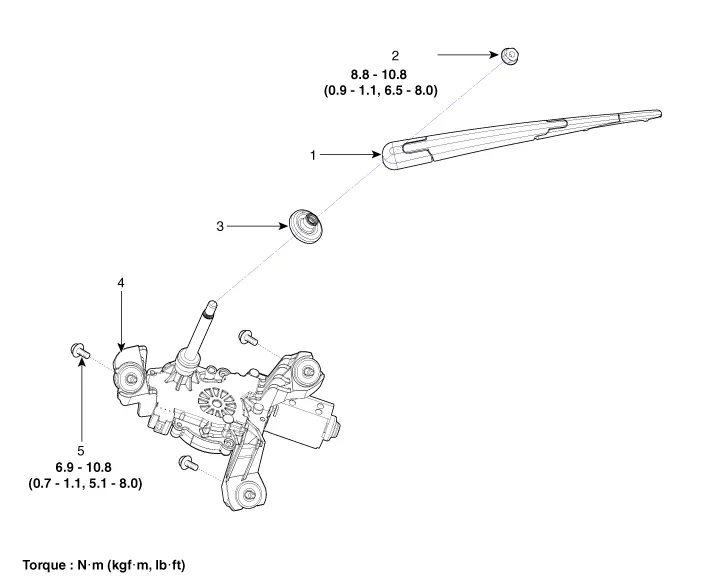

| Component Location |
| 1 . Rear wiper arm & blade 2 . Rear wiper arm nut 3 . Rear wiper grommet | 4 . Rear wiper motor assembly 5 . Rear wiper motor bolt |
Components and components location Components Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the rear bumper assembly.
Repair procedures Inspection Rear Wiper Motor 1.Remove the connector from the rear wiper motor. 2.Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.
Other information:
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Immobilizer System
Schematic diagrams Circuit Diaram Description and operation Description The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer system aims to drastically reduce the rate of auto theft.
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Mode Control Actuator
Components and components location Component Location 1. Mode Control Actuator Description and operation Description The mode control actuator is located at the heater unit. It adjusts position of mode door by operating mode control actuator based on signal of A/C control unit.
