Kia Picanto (JA): Cylinder Block Assembly / Rear Oil Seal

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Engine Mechanical System / Cylinder Block Assembly / Rear Oil Seal

Repair procedures

Replacement
1.
Remove the transaxle assembly.
(Refer to Manual Transaxle System - "Manual Transaxle")
2.
Remove the flywheel.
(Refer to Cylinder Block Assembly - "Flywheel")
3.

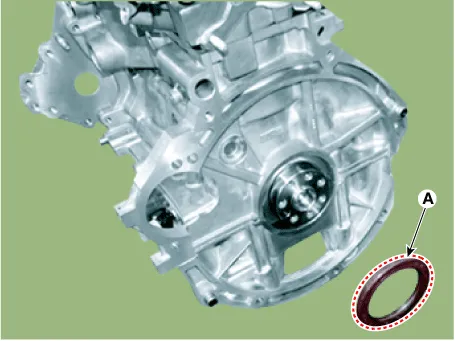

Remove the rear oil seal (A).

4.

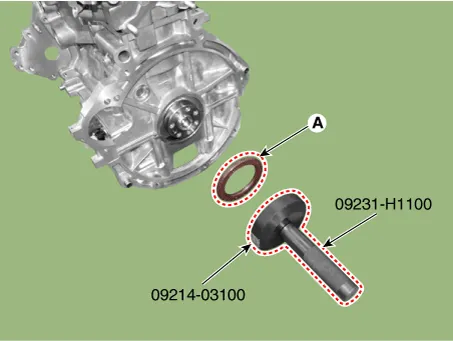

Using the SST (09214-03100, 09231-H1100) and a plastic hammer, tap in a new oil seal (A) until SST surface is flush with the cylinder block.


•
Before assembling oil seal, the hardened sealant or hazardous material on the boundary area between cylinder block and ladder frame must be removed.
•
Apply engine oil to a new oil seal lip.
•
Install the oil seal by pressing it into the correct direction and be careful not to damage it.
5.
Install the remaining parts in the reverse order of removal.
