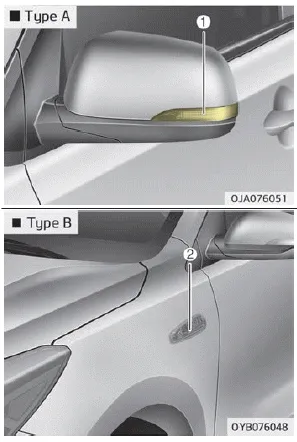

Kia Picanto (JA): Light bulbs / Light bulb position (Side)
1. Side repeater lamp (LED type)
2. Side repeater lamp (bulb type)
1. Rear turn signal lamp (Bulb type) 2. Tail lamp (BULB type) 3. Stop and tail lamp (BULB type) 4. Tail lamp (LED type) 5. Stop and tail lamp (LED type) 1.
1. Open the hood. 2. Remove the headlamp bulb cover by turning it counterclockwise. 3. Disconnect the headlamp bulb socket-connector. 4. Unsnap the headlamp bulb retaining wire by pressing the end and pushing it upward.
