| Components |

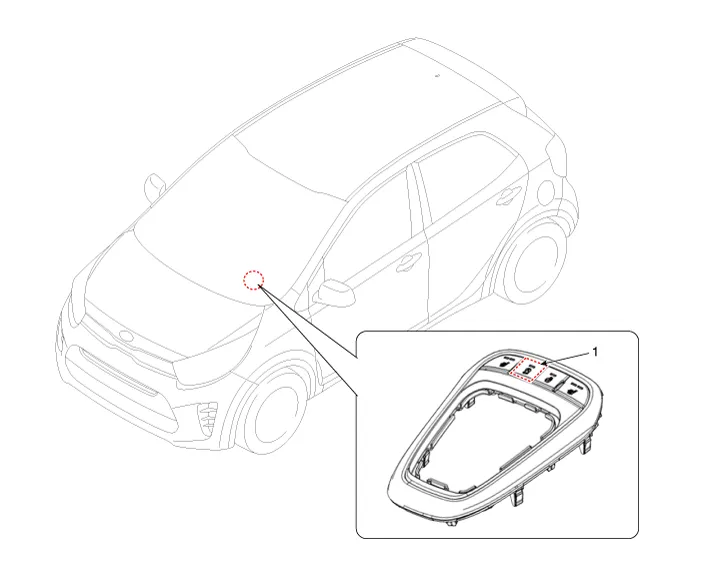

| 1. ISG OFF switch |
| Description |
| Circuit Diagram |

| Removal |
| 1. | Turn ignition switch OFF and disconnect the battery negative (-) terminal. |

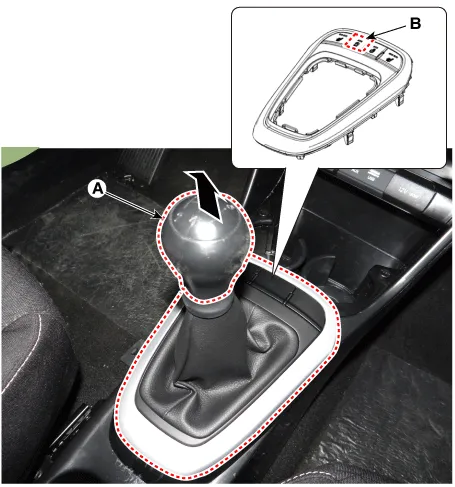

| 2. | Remove the knob (A) by pulling it in the direction of arrow. |
| 3. | Using a remover, remove the console indicator cover assembly (B).
|

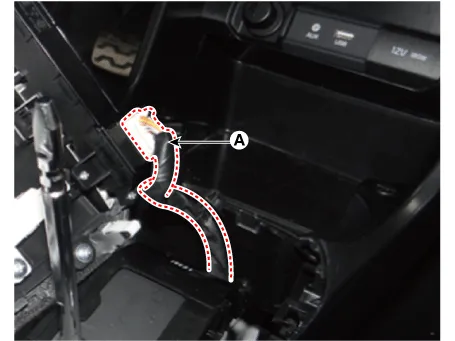

| 4. | Disconnect the connector (A) from the console indicator cover assembly.
|

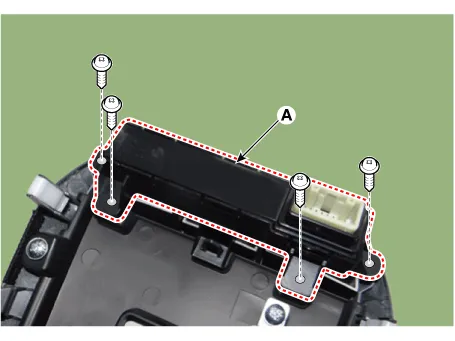

| 5. | Remove the console upper cover switch (A) after loosening the mounting screws.
|
| Installation |
| 1. | Install the console upper cover switch. |
| 2. | Connect the console indicator cover assembly connector. |
| 3. | Install the console indicator cover assembly. |
| 4. | Install the gear knob & gear boots. |
| 5. | Connect the negative (-) battery terminal. |
