Kia Picanto (JA): Body Side Molding / Front Wheel Guard

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Body Side Molding / Front Wheel Guard

Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the front tire.
2.

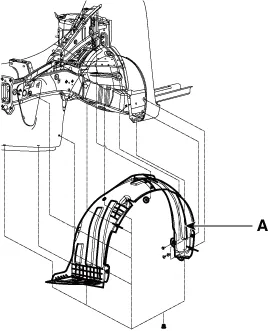

Remove the front wheel guard (A), after loosening the mounting clips and nuts.

3.
Install in the reverse order of removal.

Replace any damaged clips.
