Kia Picanto (JA): Chassis / Drive Shafts and Boots
Repair procedures
| Inspection |

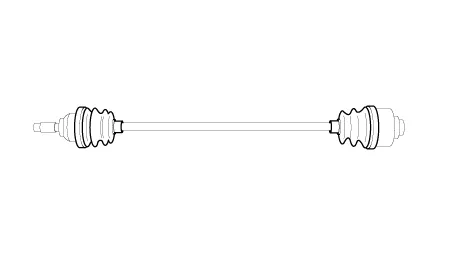

| 1. | Check the drive shaft boots for loose clamps, cracks, grease leaks, kinks or damage.
|
