| Components |

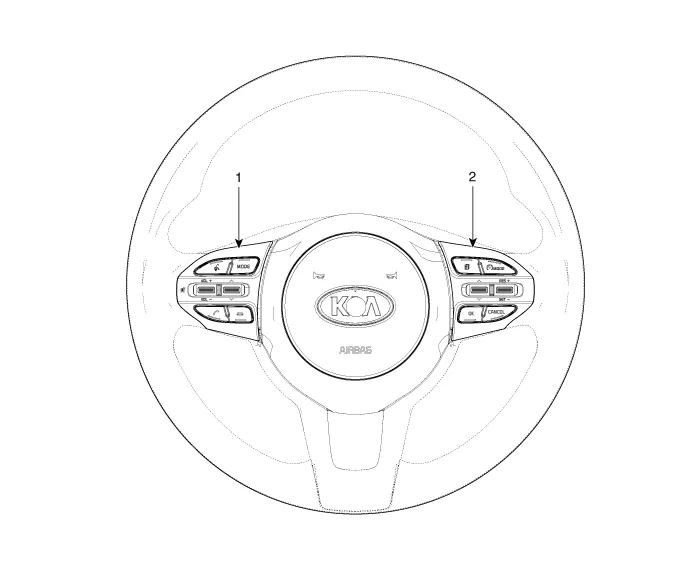

| 1. Left Remote Control Switch (Audio + Hands free + Voice) | 2. Right Remote Control Switch (Cruise+Trip Computer) |

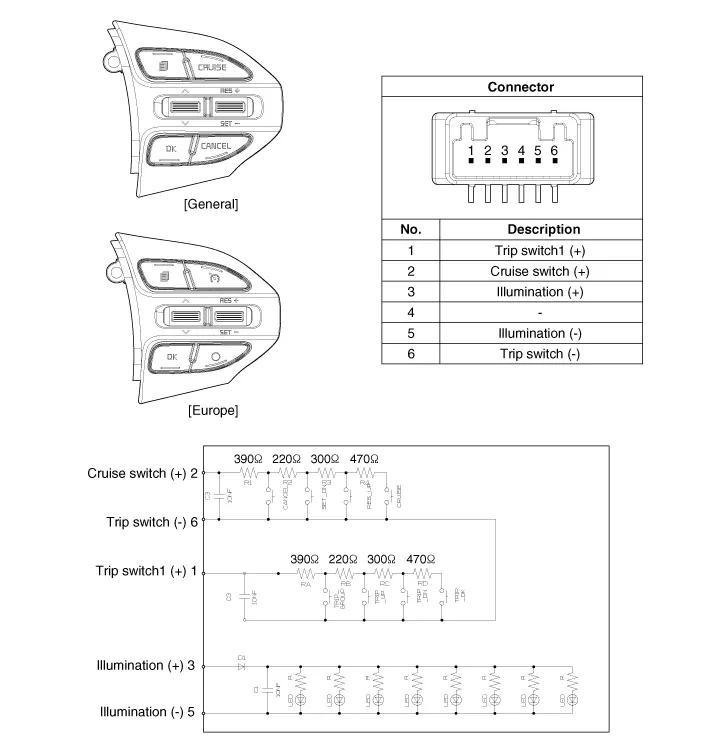

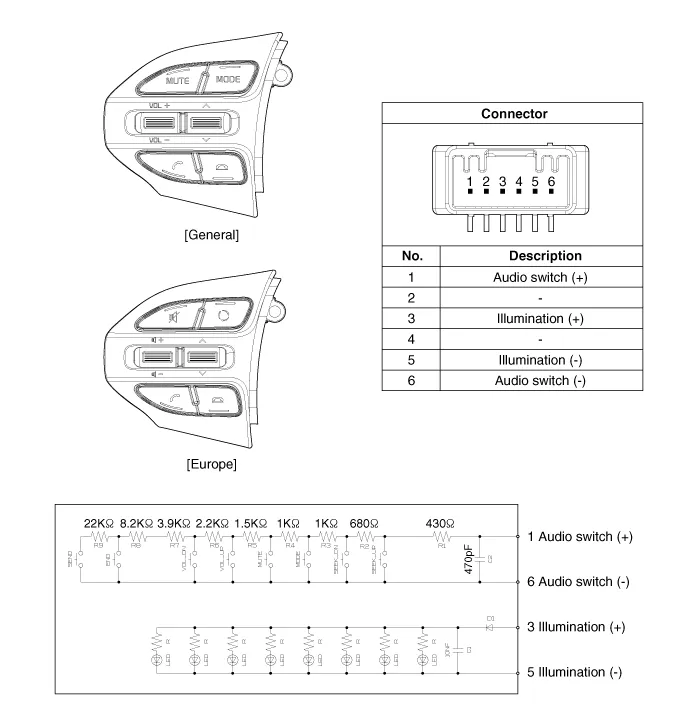

| Circuit Diagram |

| [Audio] |

| [Audio + Bluetooth] |

| [Audio + Bluetooth + Voice] |

| [Trip (2 Button) + SEG LCD Cluster] |

| [Trip (2 Button) + ACC + Cruise] |

| [Trip (2 Button) + ACC + Cruise + SLD] |

| [Trip (4 Button) + DOT&TFT LCD Cluster] |

| [Trip (4 Button) + ACC + Cruise] |

| [Trip (4 Button) + ACC + Cruise + SLD] |

| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the steering wheel assembly.
(Refer to Steering System - "Steering Wheel")
|

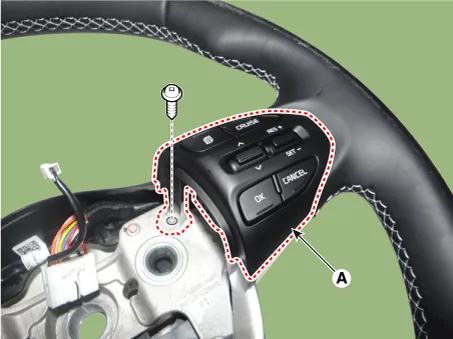

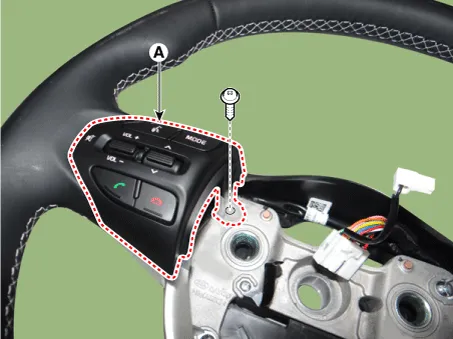

| 3. | Remove the steering wheel remote control (A) after loosening the mounting screws. [LH]
[RH]
|

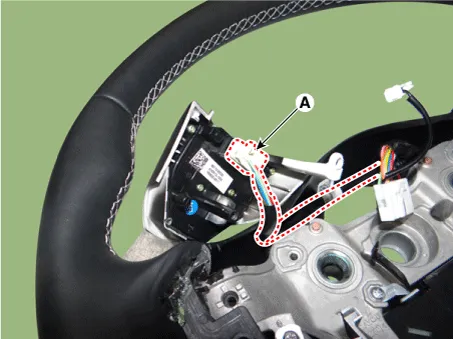

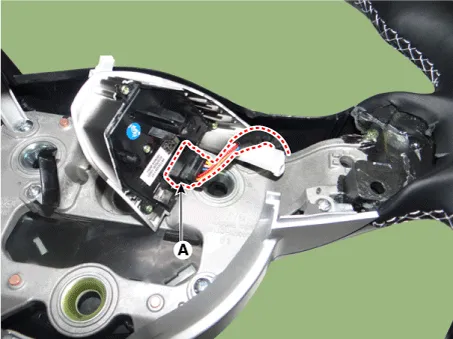

| 4. | Disconnect the steering wheel remote control connector (A). [LH]
[RH]
|
| Installation |
| 1. | Connect the steering wheel remote control connector. |
| 2. | Install the steering wheel remote control. |
| 3. | Install the steering wheel and driver airbag module. |
| 4. | Connect the negative (-) battery terminal. |
| Inspection |
| 1. | Check for resistance between terminals in each switch position (LH).
[LH : Audio + Hands free + Voice]
|
| 2. | Check for resistance between terminals in each switch position (RH).
[RH : Cruise + Trip]
|
