| Removal and Installation |
| 1. | Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
| 2. | Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
|

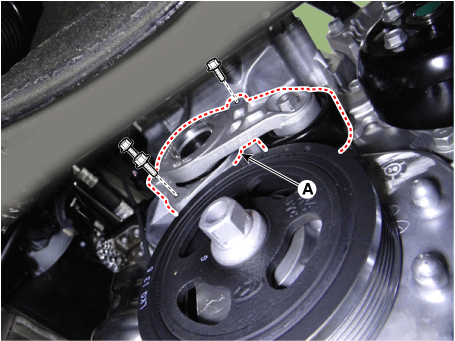

| 3. | Remove the drive belt tensioner (A).
|
| 4. | Install in the reverse order of removal. |
| Inspection |
