Kia Picanto: Tire Pressure Monitoring System (TPMS) / Tire Pressure Monitoring
System malfunction
The TPMS malfunction indicator will illuminate
() after it blinks for approximately
1 minute when there is a problem
with the Tire Pressure Monitoring
System. This sequence will continue
upon subsequent vehicle start-ups as
long as the malfunction exists.
If the indicator remains illuminated or
illuminates even after TPMS setting,
have the system checked by a professional
workshop. Kia recommends to
visit an authorized Kia dealer/service
partner.
WARNING
- If there is a malfunction with the
TPMS, low tire pressure will not be
indicated. In this case, have the
system serviced by a professional
workshop. Kia recommends to visit
an authorized Kia dealer/service
partner.
- If the system does not work due
to TPMS removal or installation of
related parts with different specification,
it might be a problem
when the vehicle is being regularly
inspected.
- When repairing TPMS related
parts, be sure to replace them to
parts with original specification or
those which satisfy the TPMS regulation.
- TPMS related parts : Tire,
wheel, ABS unit, suspension
WARNING
FOR EUROPE
Do not modify the vehicle. It may interfere
with the TPMS function.
❈ All vehicles sold in the EUROPE
market during below period
must be equipped with TPMS.
- New model vehicle : Nov. 1,
2012 ~
- Current model vehicle : Nov. 1,
2014~(Based on vehicle registrations)

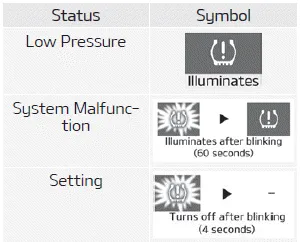

Reference : Indicator Light
