1. Sunroof glass

Repair procedures
Replacement

Put on gloves to protect your hands.
1.
Close the sunroof glass completely by pressing the sunroof switch.
2.

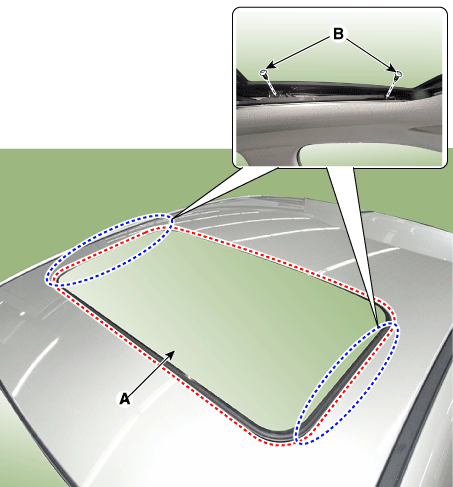

Loosen the mounting screws (A) and remove the sunroof glass (B).

Do not damage the roof panel.

3.
Install in the reverse order of removal.

After replacing the movable glass adjust the alignment if needed.
