Kia Picanto: Your vehicle at a glance / Exterior overview

Kia Picanto JA 2017-2025 Owner's Manual / Your vehicle at a glance / Exterior overview

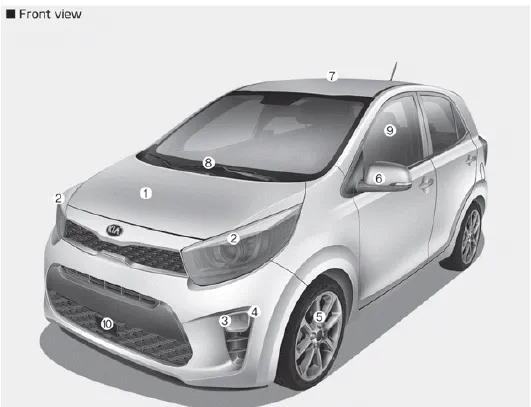

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Front fog lamp (Features of your vehicle)
Front fog lamp (Maintenance)
4. DRL lamp (Features of your vehicle)
5. Wheel and tire
6. Outside rearview mirror
7. Sunroof
8. Front windshield wiper blades (Features of your vehicle)
9. Windows
10. Radar type Autonomous Emergency Braking

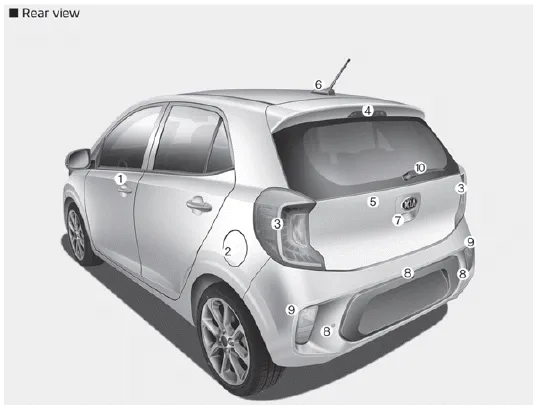

1. Door locks
2. Fuel filler lid
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Tailgate
6. Antenna
7. Rearview camera
8. Rear parking assist system
9. Back up lamp (Maintenance)
10. Rear window wiper blade (Features of your vehicle)

Your vehicle at a glance

...

Interior overview

1. Inside door handle 2. Door lock/unlock button 3. Outside rearview mirror folding switch 4. Outside rearview mirror control switch 5. Central door lock switch 6. Power window lock button ...
