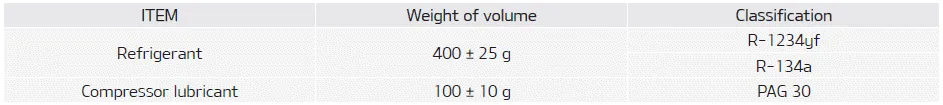

Weight/Volume

Air conditioning system

Please contact a professional workshop for more details.
Kia recommends to contact an authorized Kia dealer/service partner.

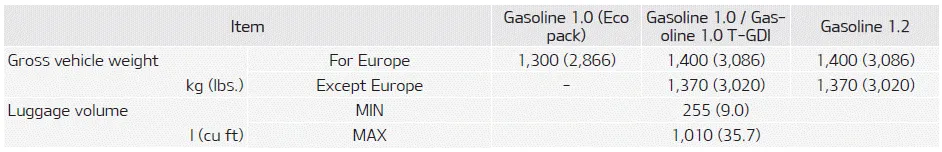

For Europe Except Europe NOTICE We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that affects driving performance.
