The TPMS malfunction indicator will illuminate
(
) after it blinks for approximately
1 minute when there is a problem
with the Tire Pressure Monitoring
System. This sequence will continue
upon subsequent vehicle start-ups as
long as the malfunction exists.
If the indicator remains illuminated or illuminates even after TPMS setting, have the system checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
WARNING
WARNING
FOR EUROPE
Do not modify the vehicle. It may interfere with the TPMS function.
❈ All vehicles sold in the EUROPE market during below period must be equipped with TPMS.
- New model vehicle : Nov. 1,
2012 ~
- Current model vehicle : Nov. 1,
2014~(Based on vehicle registrations)

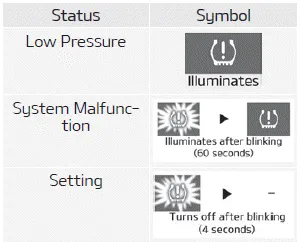

Reference : Indicator Light Status

The ( ) warning light will illuminate when an under-inflated tire is indicated. In certain types, the above message might be displayed on the cluster.
C
Repair procedures Removal • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
