Kia Picanto (JA): Your vehicle at a glance / Exterior overview

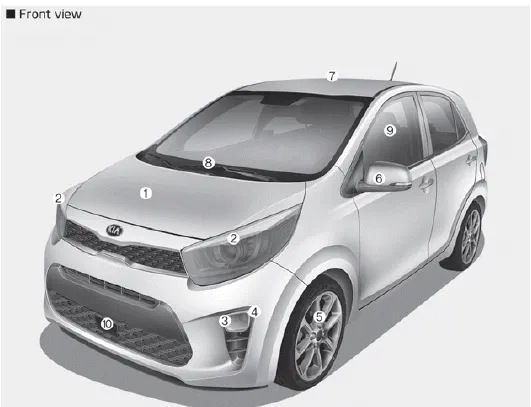

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Front fog lamp (Features of your vehicle)
Front fog lamp (Maintenance)
4. DRL lamp (Features of your vehicle)
5. Wheel and tire
6. Outside rearview mirror
7. Sunroof
8. Front windshield wiper blades (Features of your vehicle)
9. Windows
10. Radar type Autonomous Emergency Braking

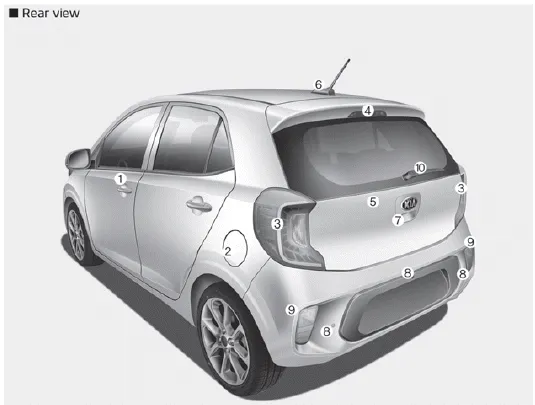

1. Door locks
2. Fuel filler lid
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Tailgate
6. Antenna
7. Rearview camera
8. Rear parking assist system
9. Back up lamp (Maintenance)
10. Rear window wiper blade (Features of your vehicle)
1. Inside door handle 2. Door lock/unlock button 3. Outside rearview mirror folding switch 4. Outside rearview mirror control switch 5. Central door lock switch 6.
Other information:
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Immobilizer Control Unit
Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") 3.Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a bolt.
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Heater & A/C Control Unit(Full Automatic)
Components and components location Components Control Panel Connector pin function No. Connector A Connector B 1 Battery PAB IGN1 2 ISG Battery (+) PAB On signal 3 Illumination (+) PAB Off signal 4 Sensor REF (+5V) - 5 Mode control actua
