| Components |

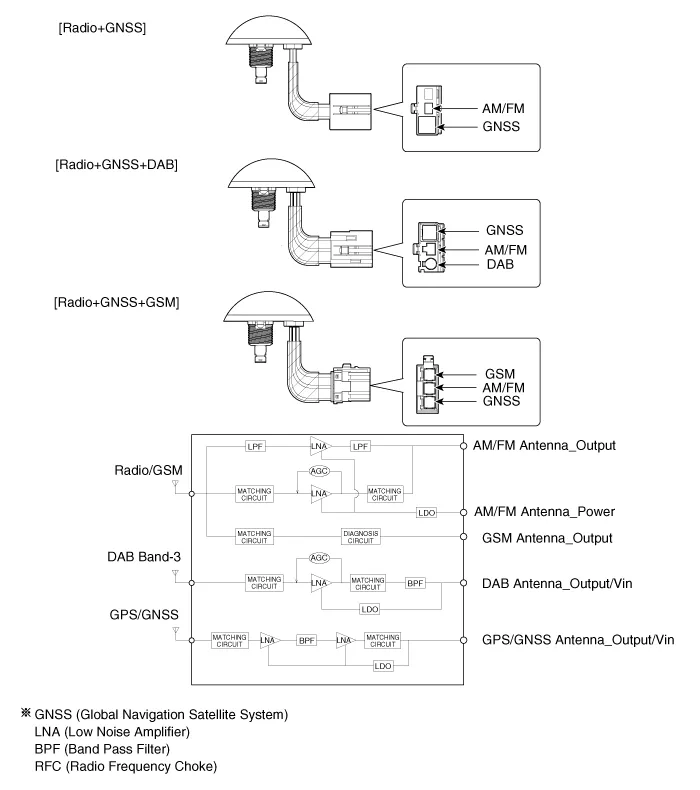

| [Roof Antenna (Radio+GPS/GNSS+DAB+GSM)] |


| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the roof trim assembly.
(Refer to Body - "Roof Trim Assembly")
|

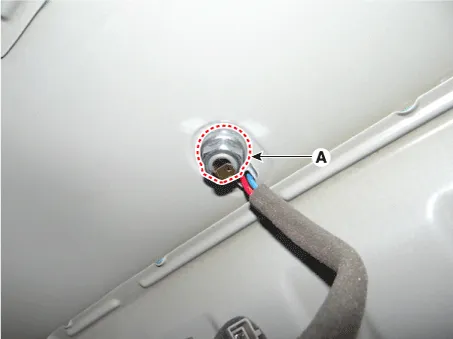

| 3. | Disconnect the radio antenna connector (A).
|

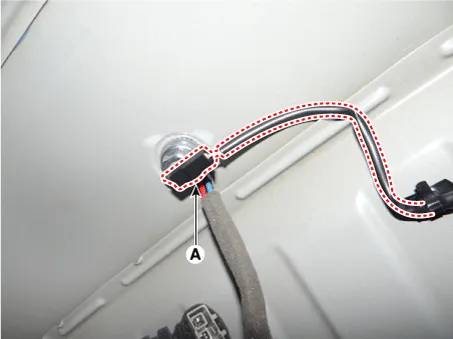

| 4. | Disconnect the roof antenna power connector (A).
|
| 5. | Remove the roof antenna (B) after loosening a nut (A).
|
| Installation |
| 1. | Install the roof antenna. |
| 2. | Connect the radio antenna and roof antenna power connector. |
| 3. | Install the roof trim assembly. |
| 4. | Connect the negative (-) battery terminal.
|
