Manual Transaxle Shift Indicator (if equipped)

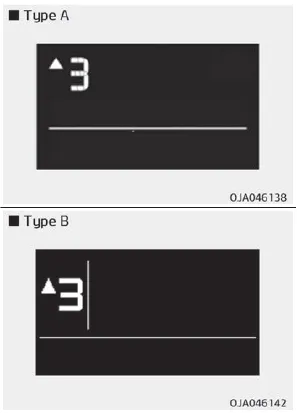

This indicator informs which gear is desired while driving to save fuel.
• Shifting up: ▲2, ▲3, ▲4, ▲5
For example
: Indicates that shifting up to
the
3rd gear is desired (currently the
shift lever is in the 2nd or 1st
gear).
When the system is not working properly, the indicator is not displayed.
Speedometer The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (mph) and/or kilometers per hour (km/h). Tachometer The tachometer indicates the approximate number of engine revolutions per minute (rpm).
Over view LCD windows show the following various information to drivers. - Trip information - LCD modes - Warning messages
Components and components location Component Location 1. Cap 2. Nut 3. Wiper arm & blade 4. Cowl top cover 5. Bolt 6. Wiper motor & linkage assembly 7. Wiper motor connector Repair procedures Removal 1.Disconnect the negative (-) battery terminal.
Components and components location Components [NON ISG] Connector pin function No. Connector A Connector B 1 Low Battery 2 Common Illumination (+) 3 Ground HTD 4 Middle (Low) ISG Battery 5 Middle (High) - 6 High Detent out (-) 7 - 8 Sen
