Kia Picanto: Rear Door / Rear Door Trim

Kia Picanto JA 2017-2024 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim

Components and components location

Component Location

1. Rear door trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the rear door delta inner cover (A) using a remover.

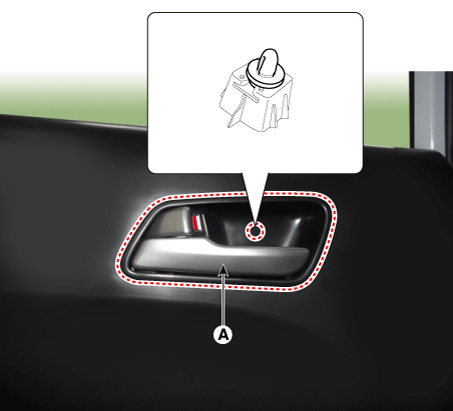

2.	Loosen the screw (B) after opening the rear door pull handle cap (A).

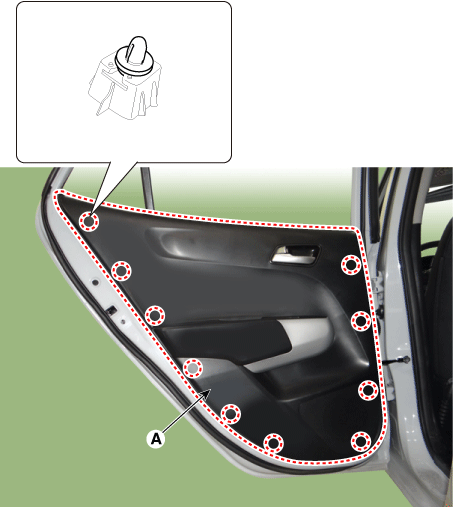

3.	Remove the rear door trim (A).

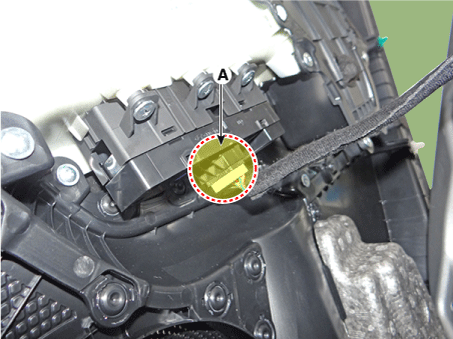

4.	Disconnect the power window switch connector (A).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
