Kia Picanto: Rear Door / Rear Door Side Weatherstrip

Kia Picanto JA 2017-2024 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip

Repair procedures

Replacement

Loosen the rear door checker (B) mounting bolt.

Tightening torque :

19.6 - 29.4 N·m (2.0 - 3.0 kgf·m,14.5 - 21.7 lb·ft)

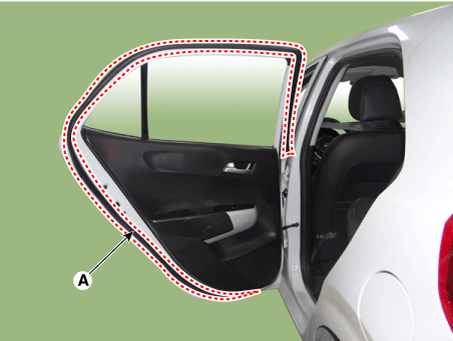

2.	Detach the clips, and remove the rear door side weatherstrip (A).

Install in the reverse order of removal.

Replace any damaged clips.
