Components and components location

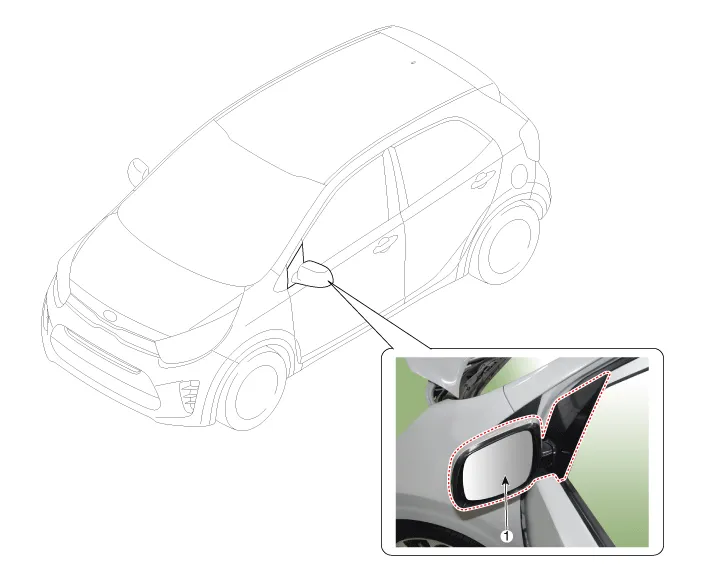

Component Location

1. Outside rear view mirror


Repair procedures
Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Using a remover, remove the front door quadrant inner cover (A).

2.
Disconnect the front door tweeter speaker connector (A).

3.
Disconnect the outside rear view mirror connector (A) and loosen the mounting bolts.
Tightening torque :
6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft)

4.
Remove the outside rear view mirror (A).

5.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.
