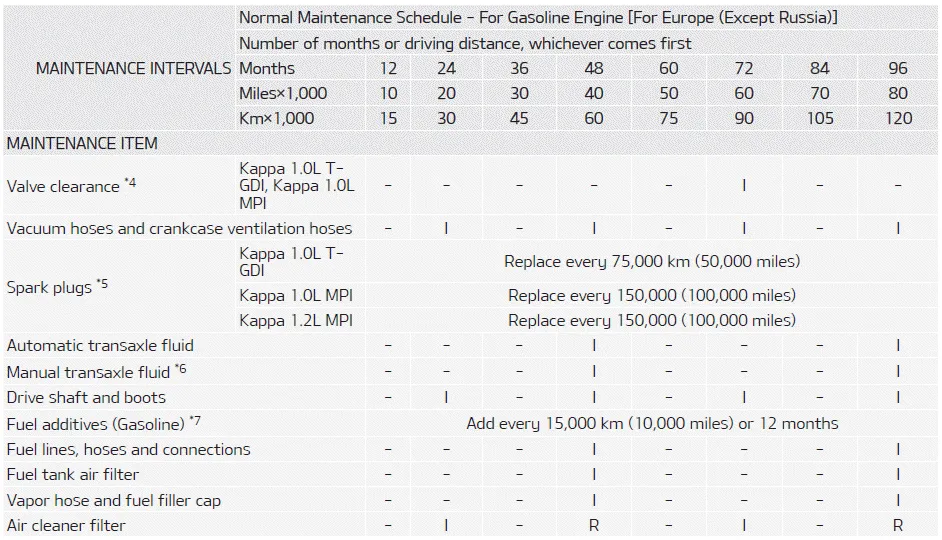

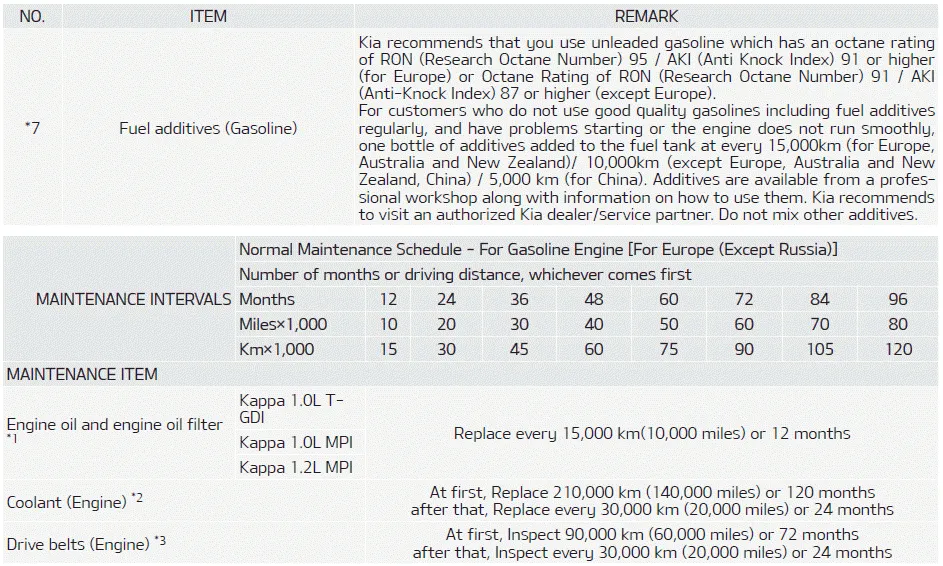

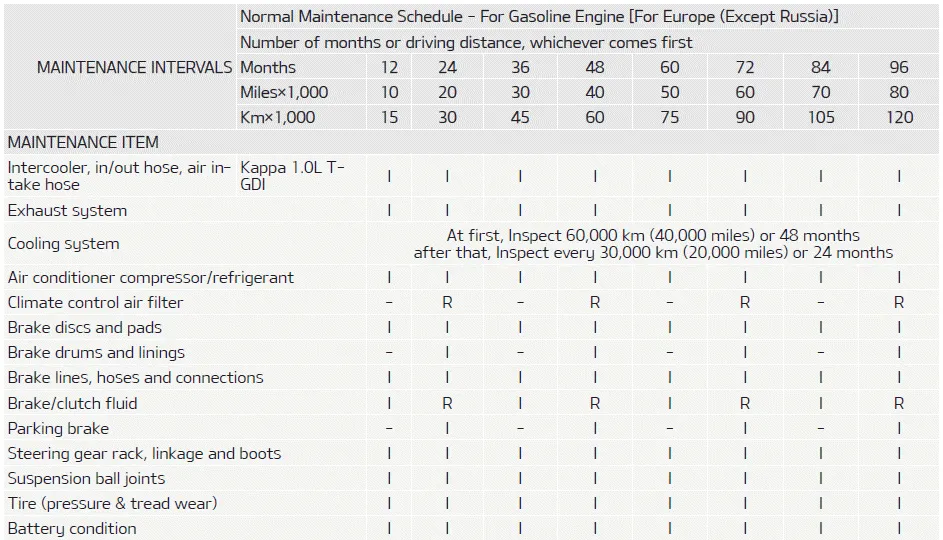

Kia Picanto: Scheduled maintenance service / Normal Maintenance Schedule - For Gasoline Engine [For Europe (Except
Russia)]
The following maintenance services must be performed to ensure good emission
control and performance. Keep receipts for
all vehicle emission services to protect your warranty. Where both mileage and
time are shown, the frequency of service is
determined by whichever occurs first.

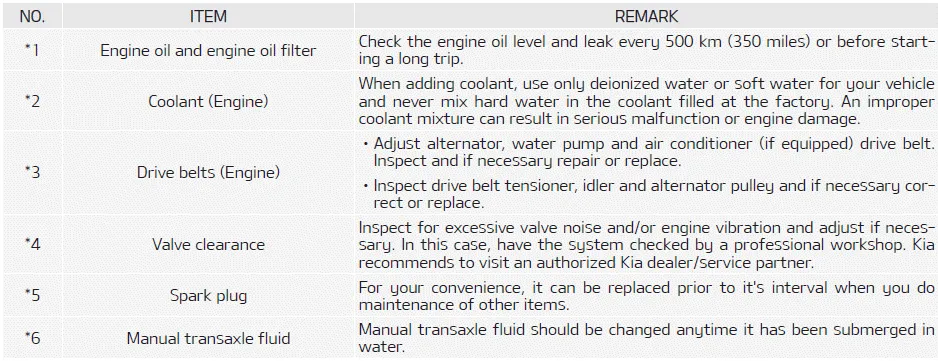

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
Follow the Normal Maintenance Schedule
if the vehicle is usually operated
where none of the following conditions
apply. If any of the following conditions
apply, follow the Maintenance Under
...
Maintenance operation
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
SEVERE DRIVING CONDITIONS
A: Repeatedly driving short distance of less than 8 km ...
