The transmitter uses a 3 volt lithium battery which will normally last for several years. When replacement is necessary, use the following procedure.

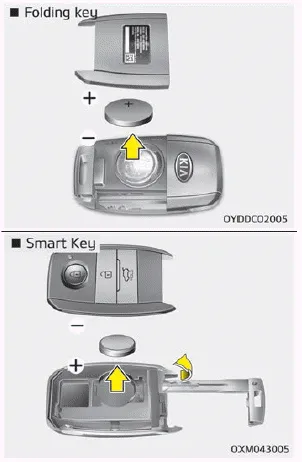

1. Insert a slim tool into the slot and gently pry open the transmitter center cover.
2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.
3. Install the battery in the reverse order of removal.
For transmitter replacement, Kia recommends to visit an authorized Kia dealer/service partner.
CAUTION
CAUTION
An inappropriately disposed battery can be harmful to the environment and human health.
Dispose the battery according to your local law(s) or regulation.
NOTICE The transmitter will not work if any of the following occurs: The ignition key is in the ignition switch. You exceed the operating distance limit (about 10 m [30 feet]).
With a smart key, you can lock or unlock a door (and tailgate) and even start the engine without inserting the key. The functions of buttons on a smart key are similar to the folding key.
