| Removal and Installation |
| 1. | Remove the cylinder head assembly.
(Refer to Cylinder Head Assembly - "Cylinder Head")
|

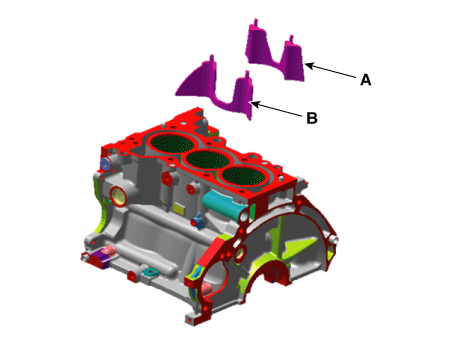

| 2. | Remove the water jacket insert inlet (A) and water jacket insert (B).
|
| 3. | Install in the reverse order of removal. |
