Manual Transaxle Shift Indicator (if equipped)

This indicator informs which gear is desired while driving to save fuel.

• Shifting up: ▲2, ▲3, ▲4, ▲5

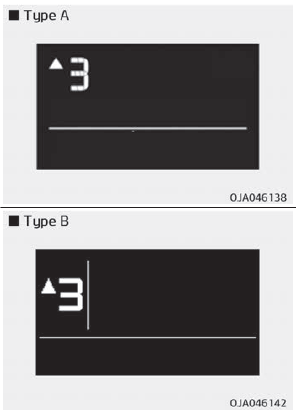

For example

: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

When the system is not working properly, the indicator is not displayed.
