Kia Picanto: Engine Mechanical System / Timing System

Kia Picanto JA 2017-2025 Service & Repair Manual / Engine Mechanical System / Timing System

Components and components location

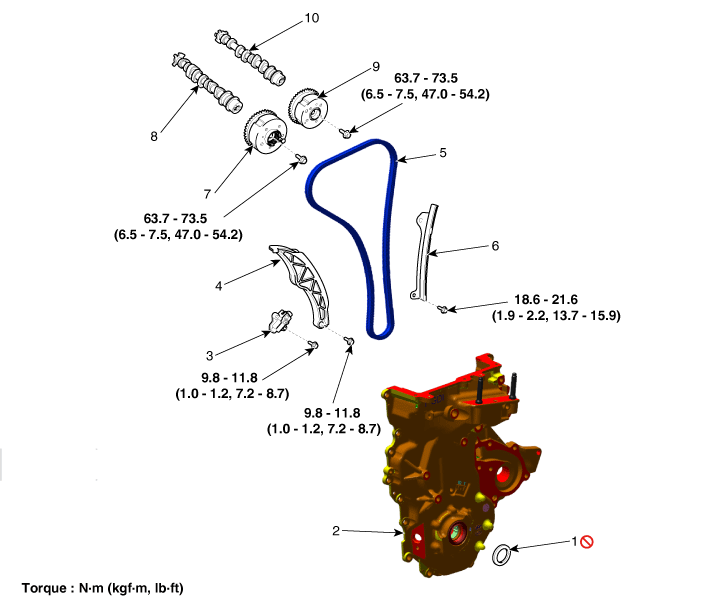

Components

1. Front oil seal
2. Timing chain cover & oil pump assembly
3. Timing chain tensioner
4. Timing chain tensioner arm
5. Timing chain
6. Timing chain guide
7. Exhaust CVVT assembly
8. Exhaust camshaft
9. Intake CVVT assembly
10. Intake camshaft

Oil Cooler
Repair procedures Removal 1.Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") 2.Drain the coolant. (Refer to C ...

Front Oil Seal
Repair procedures Replacement 1.Remove the crankshaft damper pulley. (Refer to Drive Belt System - "Crankshaft Damper Pulley") 2.Remove the crankshaft front oil seal (A). ...
