Kia Picanto: Tailgate / Tailgate Weatherstrip

Kia Picanto JA 2017-2023 Service & Repair Manual / Body (Interior and Exterior) / Tailgate / Tailgate Weatherstrip

Repair procedures

Replacement

Do not apply sealant to the body.

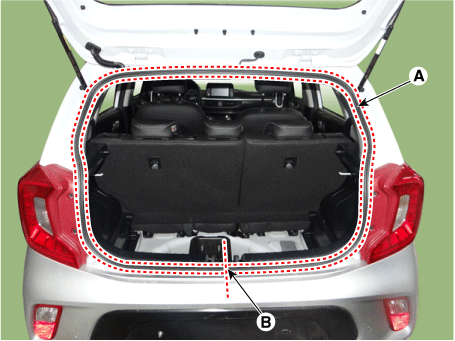

1.	Remove the tailgate weatherstrip (A).

Install in the reverse order of removal.

Install the weatherstrip aligned with center line (B).
