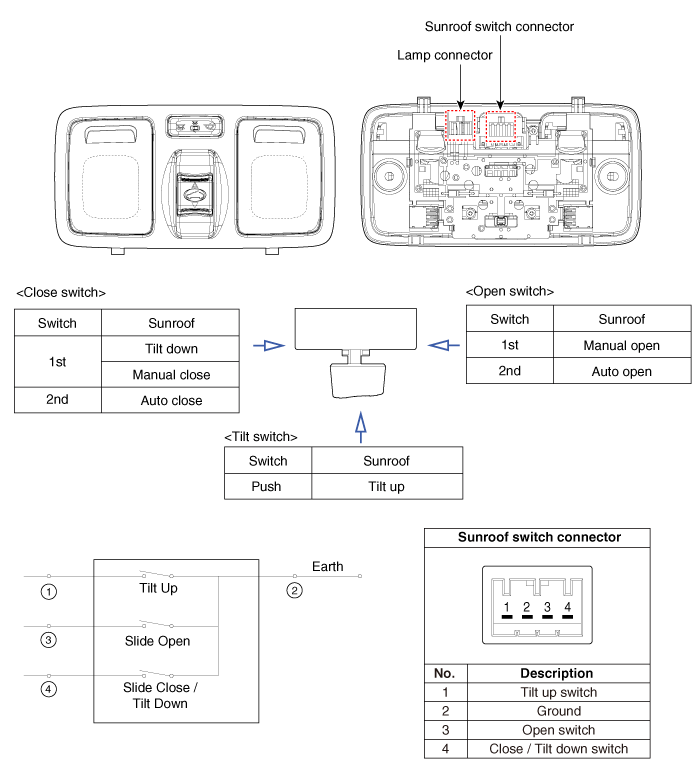

Components and components location

Components

Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

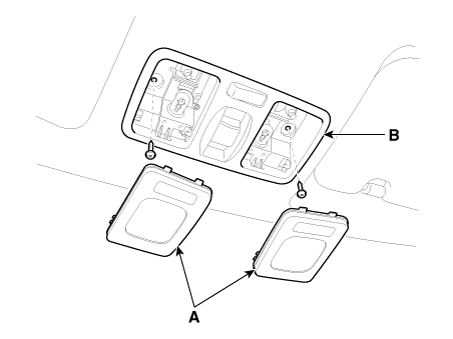

2.	Remove the map lamp lens (A).

3.	Remove the map lamp (B) after loosening the mounting screws.

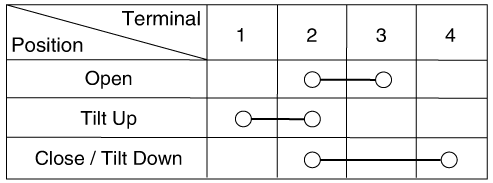

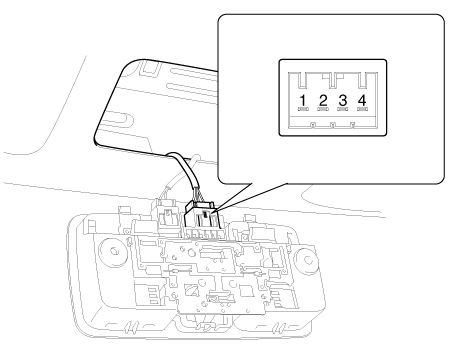

4.	Check for continuity between the terminals. If the continuity is not shown as specified, replace the panoramaroof switch.
