Kia Picanto: Sunroof / Sunroof Sunshade

Kia Picanto JA 2017-2024 Service & Repair Manual / Body (Interior and Exterior) / Sunroof / Sunroof Sunshade

Repair procedures

Replacement

1.	Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly")

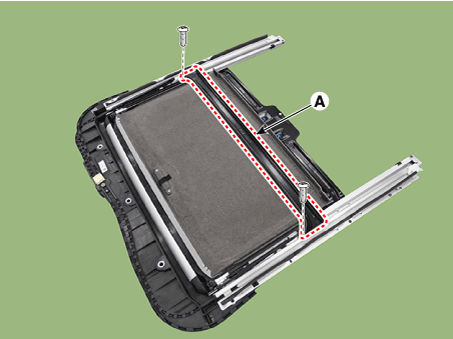

2.	Remove the drip rail assembly (A) after loosening the mounting screws.

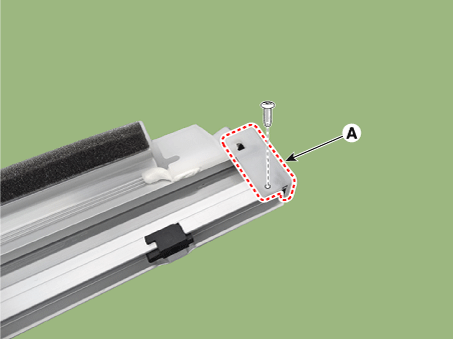

3.	Separate the rear drip (A) after loosening the mounting screws.

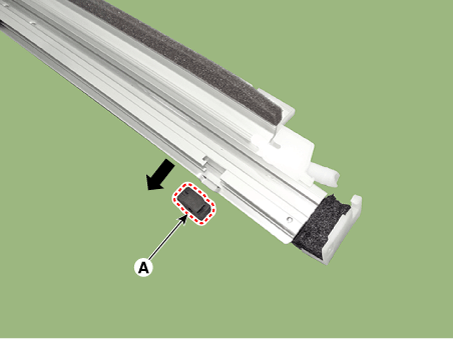

4.	Remove the stopper (A) by pushing it in the direction of the arrow.

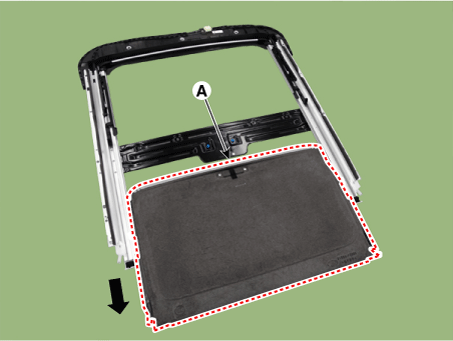

5.	Remove the sunroof sunshade (A) by pushing it backward.

Install in the reverse order of removal.

Make sure to initialize the motor.
