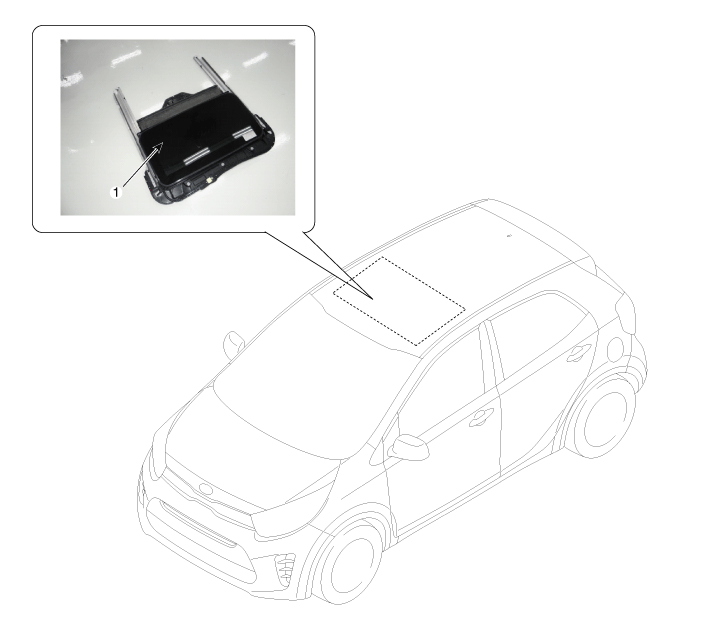

1. Sunroof assembly

Repair procedures
Replacement

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on glove to protect your hands.
1.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
Remove the sunroof glass.
(Refer to Sunroof - "Sunroof Glass")
3.

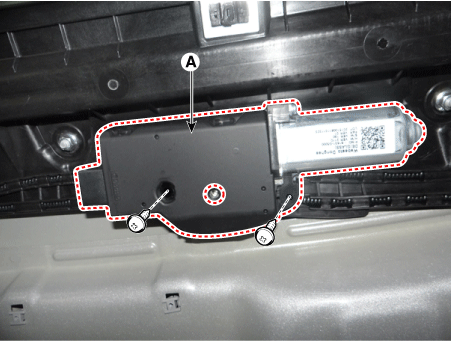

Loosen the mounting screws and remove the sunroof motor (A).

4.

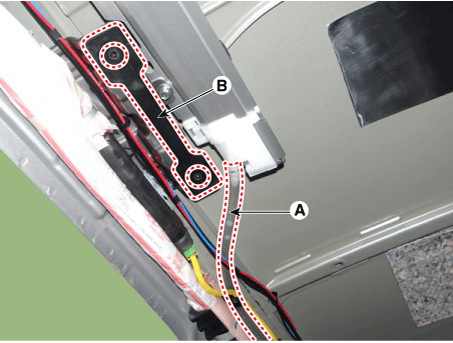

Remove the drain hose (A) and assist handle guide plate (B).

5.

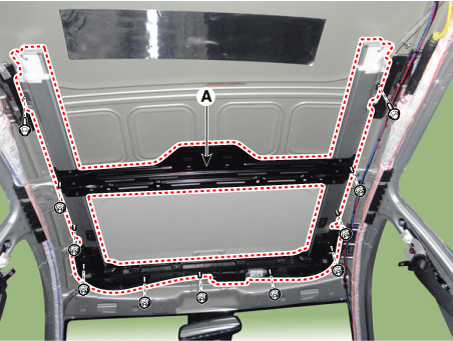

Remove the sunroof assembly (A) after loosening the nuts and bolts.
Tightening torque :
Bolt : 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
Nut : 3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)

6.
Install in the reverse order of removal.

Make sure to initialize the motor.
Sunroof Deflector
Repair procedures Replacement 1. Open the glass fully. 2. Remove the mounting pins (B), and then remove the deflector (A). 3. Install in the reverse order of removal. ...

Sunroof Sunshade
Repair procedures Replacement 1.Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly") 2.Remove the drip rail assembly (A) after loosening the mounting screws. ...
