| Inspection |
| 1. | Problem in SMART KEY unit input. |
| 2. | Problem in SMART KEY unit. |
| 3. | Problem in SMART KEY unit output. |
| 1. | SMART KEY unit Input problem : switch diagnosis |
| 2. | SMART KEY unit problem : communication diagnosis |
| 3. | SMART KEY unit Output problem : antenna and switch output diagnosis |
| 1. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel, turn the power on KDS/GDS. |
| 2. | Select the vehicle model and then SMART KEY system. |
| 3. | Select the "SMART KEY unit". |

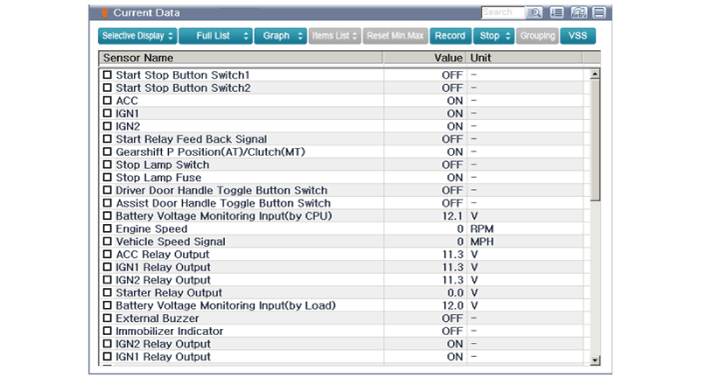

| 4. | After IG ON, select the "Current data".
|
| 5. | You can see the situation of each switch on scanner after connecting the "current data" process.
|
| 1. | Communication diagnosis checks that the each linked components operates normal. |
| 2. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel. |

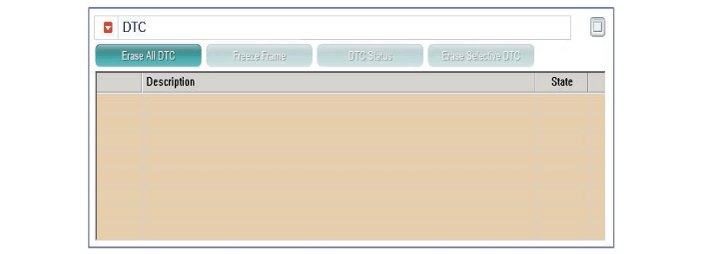

| 3. | After IG ON, select the "DTC".
|
| 1. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel. |

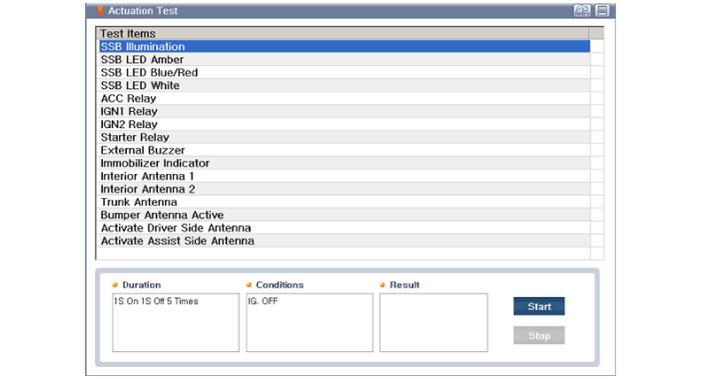

| 2. | After IG ON, select the "Actation Test".
|
| 3. | Set the smart key near the related antenna and operate it with a KDS/GDS. |
| 4. | If the LED of smart key is blinking, the smart key is normal. |
| 5. | If the LED of smart key is not blinking, check the voltage of smart key battery. |
| 6. | Antenna actuation
|
| 1. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel. |

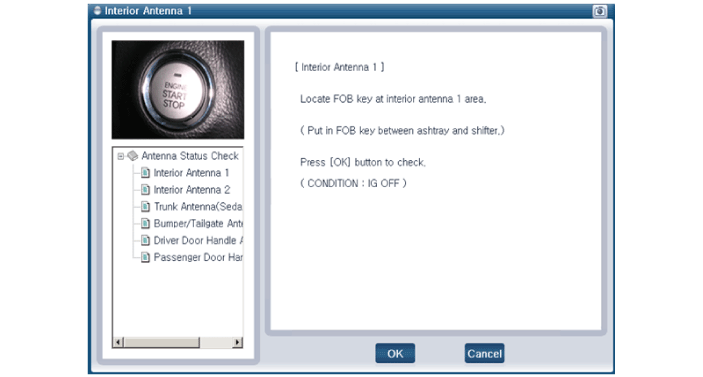

| 2. | Select the "Antenna Status Check".
|
| 3. | After IG ON, select the "Antenna Status Check".
|
| 4. | Set the smart key near the related antenna and operate it with a KDS/GDS.
|
| 5. | If the smart key runs normal , the related antenna, smart key(transmission, reception) and exterior receiver are normal. |
| 6. | Antenna status
|
| 1. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel. |

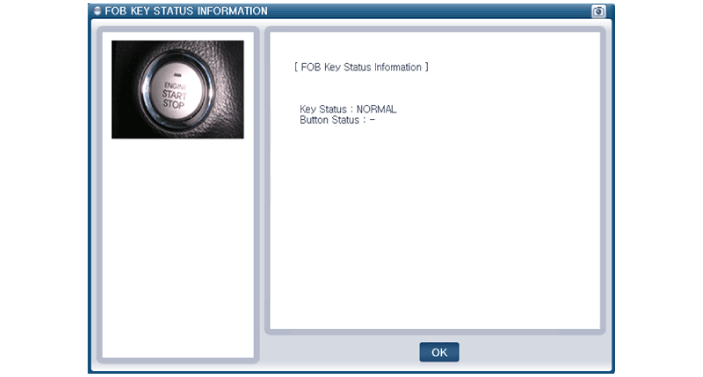

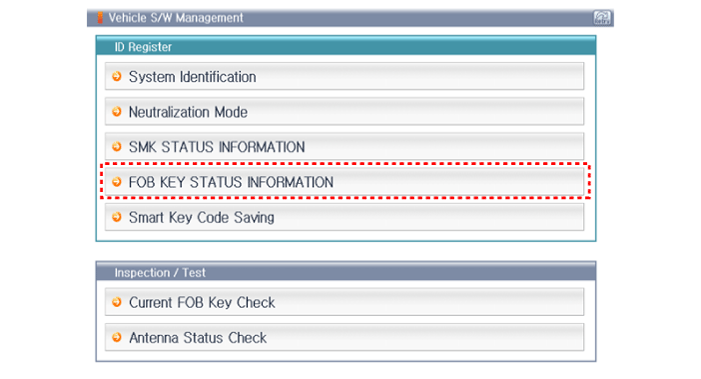

| 2. | After IG ON, select the "FOB KEY STATUS INFO".
|
| 1. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel. |

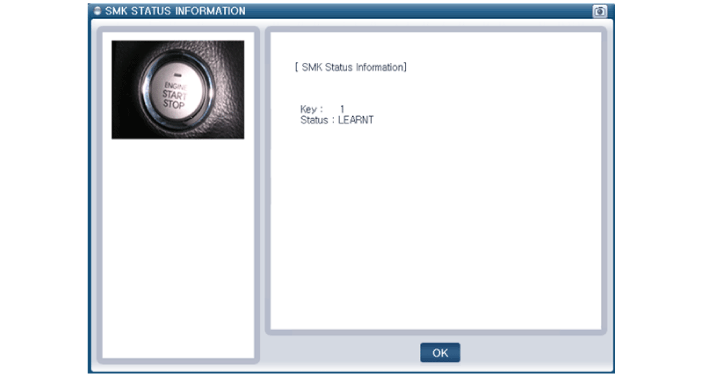

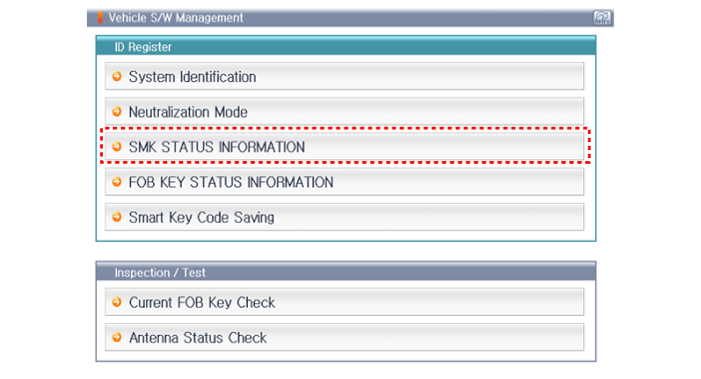

| 2. | After IG ON, select the "SMK STATUS INFO".
|
| 1. | Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel. |

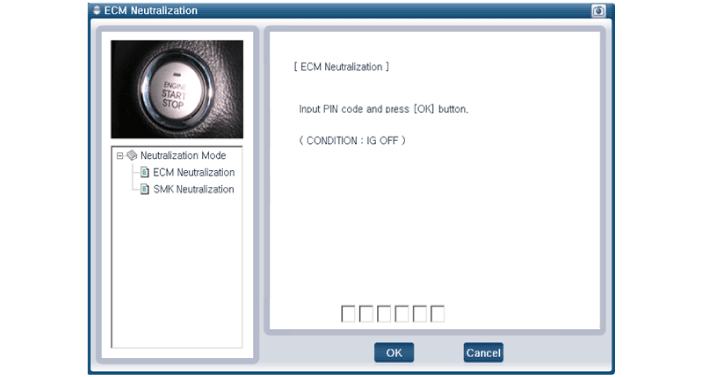

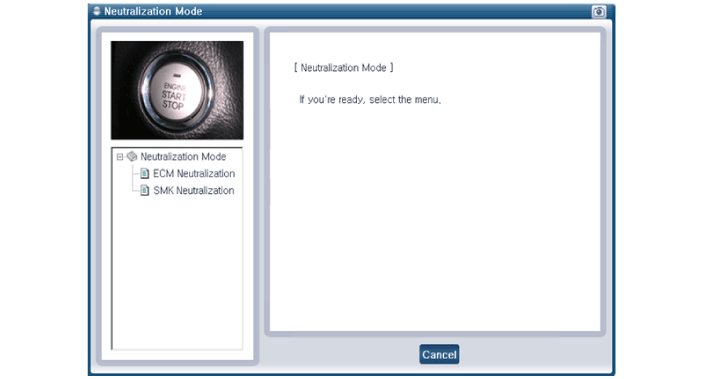

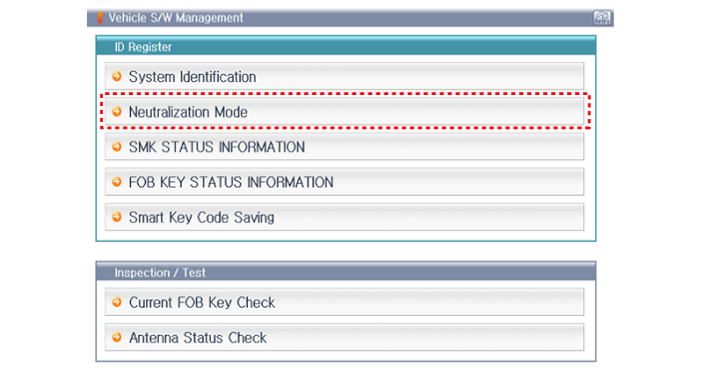

| 2. | After IG ON, select the "Neutralization mode".
|
