Components and components location

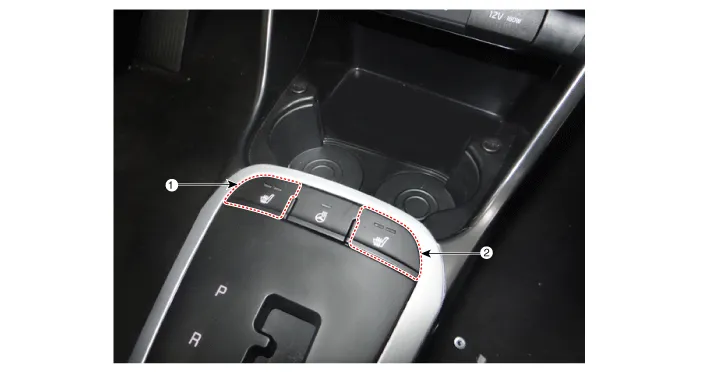

Components

1. Driver side seat heater switch

2. Passenger side seat heater switch

Schematic diagrams

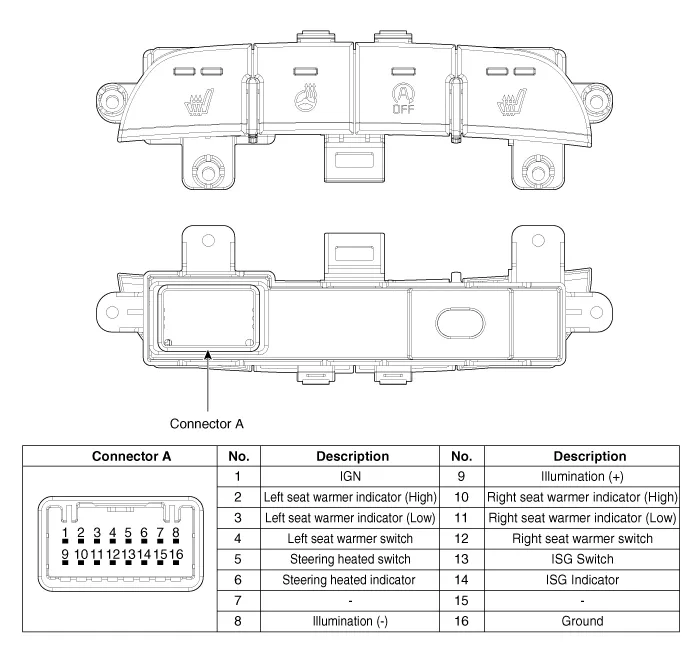

Circuit Diagram

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	To remove the gear knob & gear boots (A) pull both of it up.

3.	Using a remover, remove the console indicator cover assembly (A).

4.	Disconnect the connector (A) from the console indicator cover assembly.

5.	Remove the console upper cover switch (A) after loosening the mounting screws.

Installation

1.	Install the console upper cover switch.

2.	Connect the console indicator cover assembly connector.

3.	Install the console indicator cover assembly.

4.	Install the gear knob & gear boots.

5.	Connect the negative (-) battery terminal.
