Kia Picanto: Clutch System / Regulator
Components and components location
| Components |

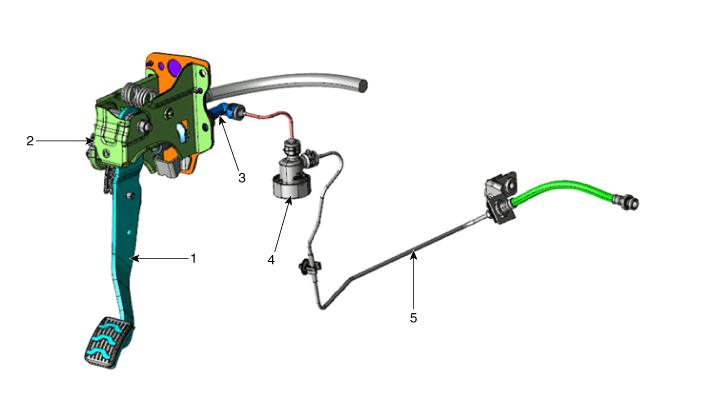

[Kappa 1.0 T-GDI]
| 1. Clutch pedal assembly 2. Ignition lock and clutch switch 3. Master cylinder | 4. Clutch regulator 5. Clutch tube |
Repair procedures
| Removal |
| 1. | Turn ignition switch OFF and disconnect the negative (-) battery cable |
| 2. | Remove the battery.
G 1.0 T-GDI KAPPA (Refer to Engine Electrical System - "Battery")
|
| 3. | Remove the ECM.
G 1.0 T-GDI KAPPA (Refer to Engine Control / Fuel System - Engine Control Module (ECM)")
|
| 4. | Remove the snap pins (A) and then remove the regulator (B).
|
| Installation |
| 1. | Install in the reverse order of removal. |
| 2. | After be equipped, perform bleeding air procedure in clutch release cylinder after pouring the brake fluid.
(Refer to Clutch Release Cylinder - "Adjustment")
|
Clutch Master Cylinder
Components and components location
Components
[Kappa 1.0 T-GDI]
1. Clutch pedal assembly 2. Ignition lock and clutch switch 3. Master cylinder 4. Clutch regulator 5. Clutch tube
...
Clutch Tube
Components and components location
Components
[Kappa 1.0 T-GDI]
1. Clutch pedal assembly 2. Ignition lock and clutch switch 3. Master cylinder 4. Clutch regulator 5. Clutch tube
...
