Kia Picanto: Brake System / Rear Drum Brake

Kia Picanto JA 2017-2024 Service & Repair Manual / Brake System / Brake System / Rear Drum Brake

Components and components location

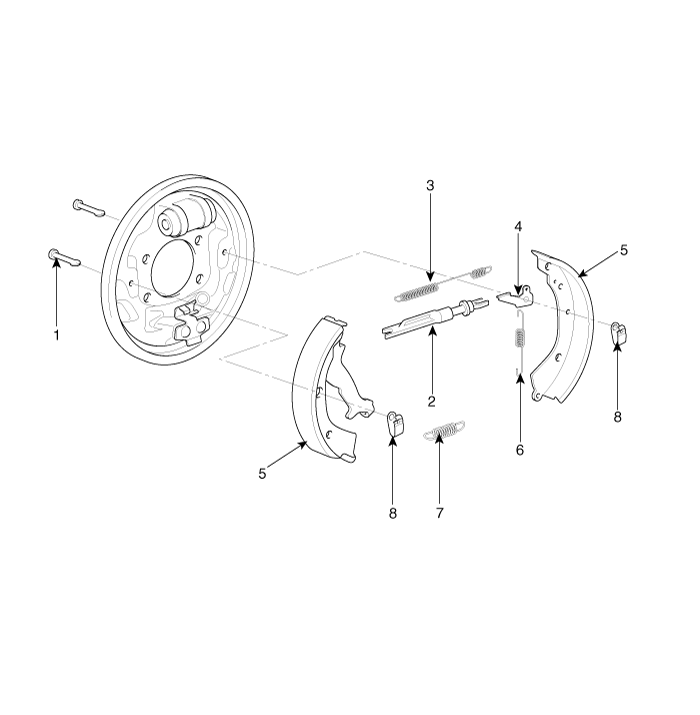

Components

1. Shoe hold down pin
2. Shoe adjuster
3. Upper return spring
4. Adjusting lever

5. Shoe
6. Adjusting spring
7. Lower return spring
8. Shoe hold spring

Repair procedures

Removal

•	Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

•	Avoid breathing dust particles.

•	Never use an air hose or brush to clean brake assemblies.

Remove the rear wheel & tire.

Tightening torque:

88.3 - 107.9 N·m (9.0 - 11.0 kgf·m, 65.1 - 79.6 lb·ft)

2.	Release the parking brake.

3.	Loosen the screw (B) and then remove the rear brake drum (A).

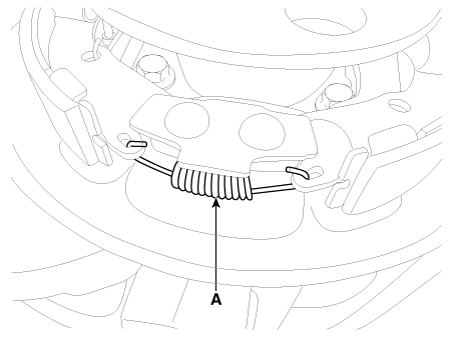

4.	Remove the lower return spring (A).

5.	Remove the upper return spring (A).

6.	Remove the shoe hold springs (A) and shoe hold pins (B) and then remove brake shoe (C). Make sure not to damage the dust cover on the wheel cylinder.

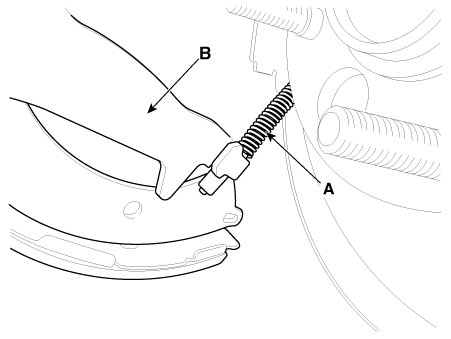

7.	Remove the parking brake cable (A) and then remove brake shoe (B).

8.	Remove the rear wheel speed sensor. (Refer to ESC (Electronic Stability Control) System - "Rear Wheel Speed Sensor")

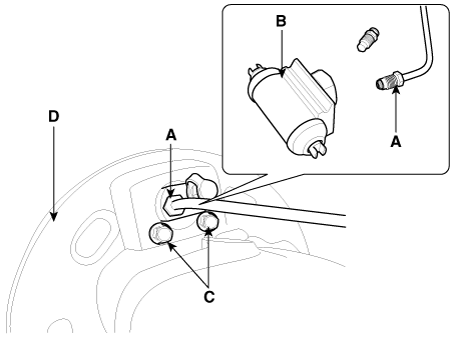

9.	Disconnect brake tubes (A) from the wheel cylinder (B).

10.	Remove the bolts (C) and the wheel cylinder (B) from the backing plate (D).

Installation

•	Do not spill brake fluid on the vehicle: it may damage the paint; if brake fluid does contact the paint. Wash it off immediately with water.

•	To prevent spills, cover the hose joints with rags or shop towels.

•	Use only a genuine wheel cylinder special bolt.

Apply sealant between the wheel cylinder (B) and backing plate (D), and install the wheel cylinder.

Tightening torque (bolts C):

9.8 - 12.7 N·m (1.0 - 1.3 kgf·m, 7.2 - 9.4 lb·ft)

Connect the brake tubes (A) to the wheel cylinder.

Tightening torque:

12.7 - 16.7 N·m (1.3 - 1.7 kgf·m, 9.4 - 12.3 lb·ft)

3.	Connect the parking brake cable (A) to the brake shoe.

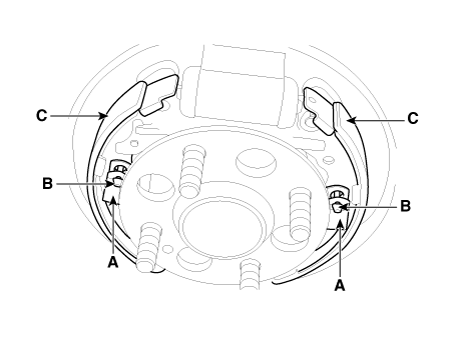

4.	Install the brake shoes (C) onto the backing plate. Be careful not to damage the wheel cylinder dust covers.

5.	Install the shoe hole down pins (B) and the shoe hole down springs (A).

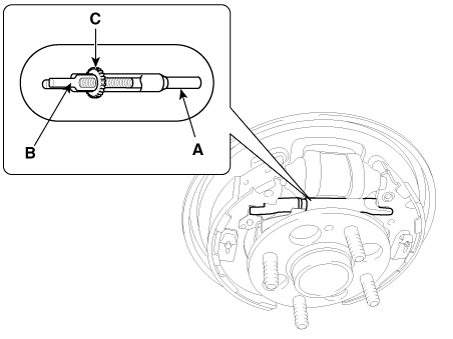

6.	Clean the threaded portions of adjuster sleeve (A) and push rod female (B). Coat the threads of the adjuster assembly with grease. To shorten the clevises, turn the adjuster bolt (C).

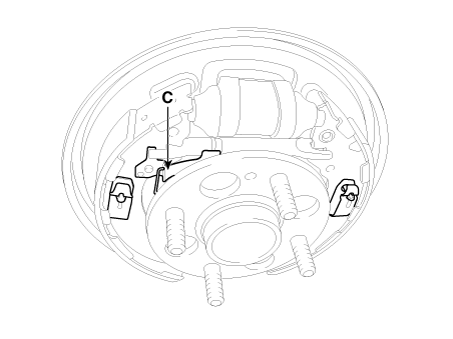

7.	Hook the shoe adjuster lever (C), then install it to the brake shoe.

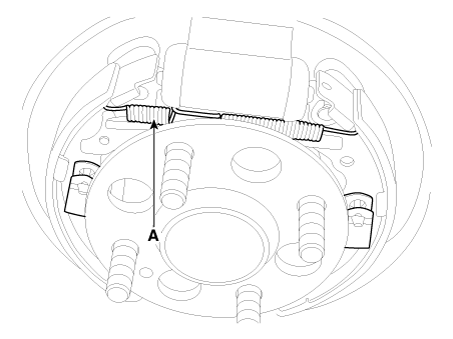

8.	Install the adjuster assembly (B) and upper return spring (A) as right direction. Be careful not to damage the wheel cylinder dust covers.

9.	Install the lower return spring (B).

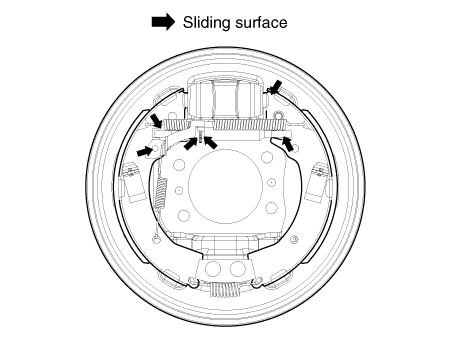

10.	Apply brake cylinder grease or equivalent rubber grease to the sliding surfaces shown. Don't get grease on the brake linings.

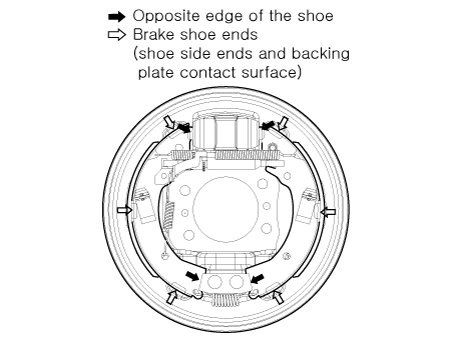

11.	Apply brake cylinder grease or equivalent rubber grease to the brake shoe ends and opposite edges of the shoes shown. Don't get grease on the brake linings.

12.

Install the rear brake drum (A).

Tightening torque:

4.9 - 5.9 N·m (0.5 - 0.6 kg·.m, 3.6 - 4.3 lb·ft)

13.	If the wheel cylinder has been removed, bleed the brake system.

14.	Depress the brake pedal several times to set the self-adjusting brake.

15.	Adjust the parking brake.

Inspection

•	Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.

•	Avoid breathing dust particles.

•	Never use an air hose or brush to clean brake assemblies.

•	Contaminated brake linings or drums reduce stopping ability.

•	Block the front wheels before jacking up the rear of the vehicle.

1.	Raise the rear of the vehicle, and make sure it is securely supported.

2.	Release the parking brake, and remove the rear brake drum.

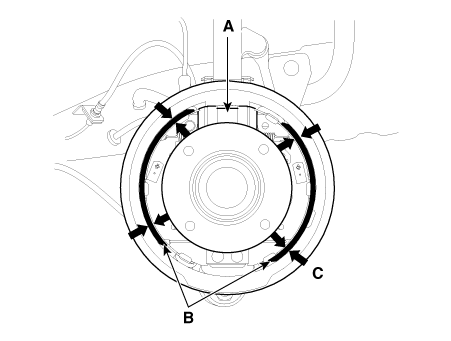

3.	Check the wheel cylinder (A) for leakage.

4.	Check the brake linings (B) for cracking, glazing, wear, and contamination.

Measure the brake lining thickness (C).Measurement does not include brake shoe thickness.

Brake lining thickness

Standard: 4.0 ~ 4.7 mm (0.1575 ~ 0.1850 in)

Service limit: 1.0 mm (0.039 in)

6.	If the brake lining thickness is less than the service limit, replace the brake shoes as a set.

7.	Check the bearings in the hub unit for smooth operation. If it requires servicing, replace it.

Measure the inside diameter of the brake drum with inside vernier calipers.

Drum inside diameter

Standard: 180 mm (7.087 in)

Service limit: 182 mm (7.165 in)

Drum roundness

Service limit: 0.06 mm (0.00236 in)

9.	If the inside diameter of the brake drum is more than the service limit, replace the brake drum.

10.	Check the brake drum for scoring, grooves, and cracks.

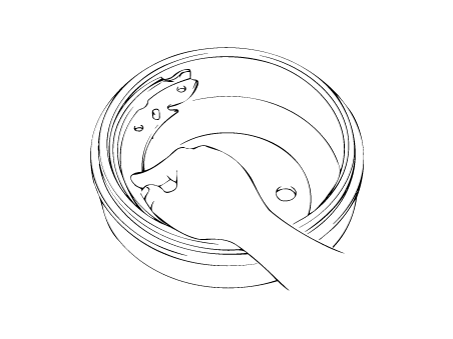

11.	Inspect the brake lining and drum for proper contact.

12.	Inspect the wheel cylinder outside for excessive wear and damage.

13.	Inspect the backing plate for wear or damage.
