Kia Picanto: Floor Console / Rear Console Cover

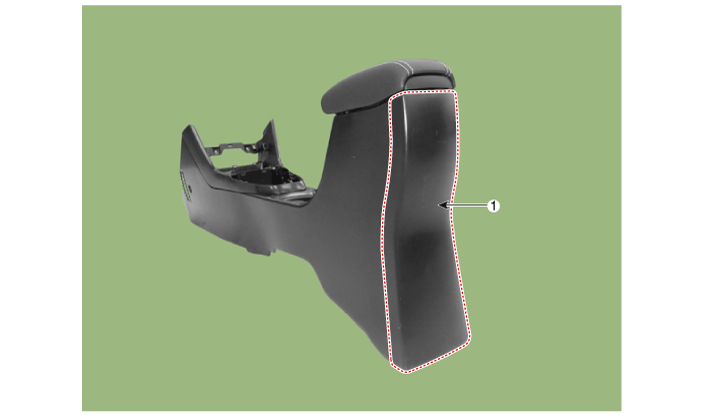

Components and components location
Repair procedures
Put on gloves to protect your hands. |
| •
| Use a plastic panel removal tool to remove interior trim pieces without marring the surface. |
| •
| Be careful not to bend or scratch the trim and panels. |
|
| 1. | Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
|

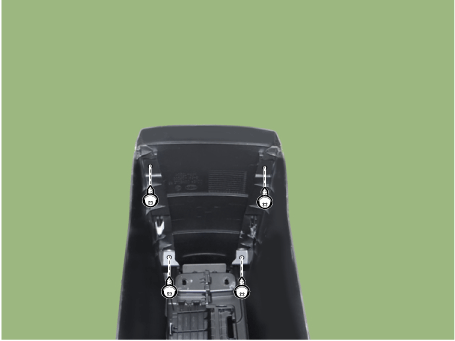

| 2. | Loosen the screws.
 |

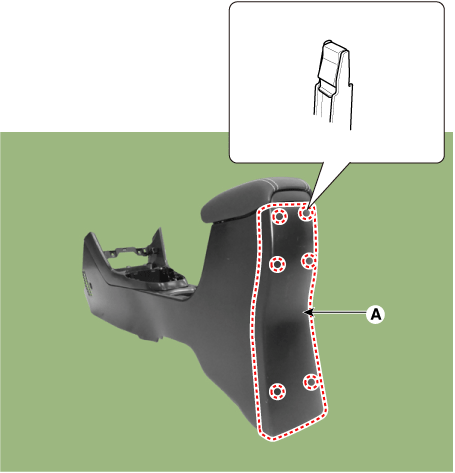

| 3. | Remove the rear console cover (A) by using a remover.
 |
| 4. | Install in the reverse order of removal. | •
| Make sure the connector is connected properly. |
| •
| Replace any damaged clips. |
|
|
