Components and components location

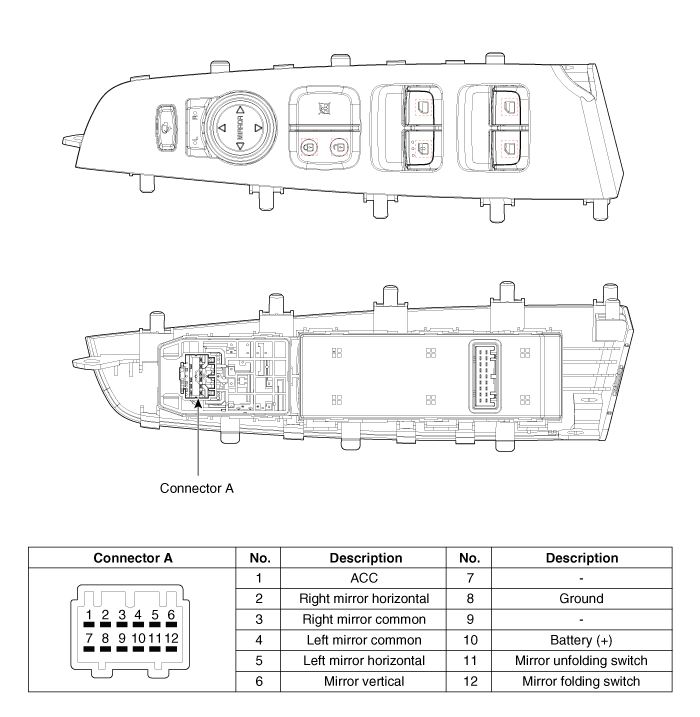

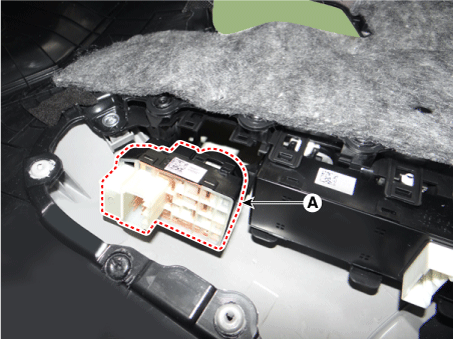

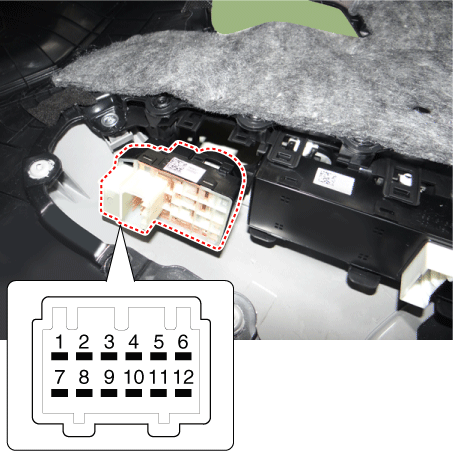

Component

Schematic diagrams

Circuit Diagram

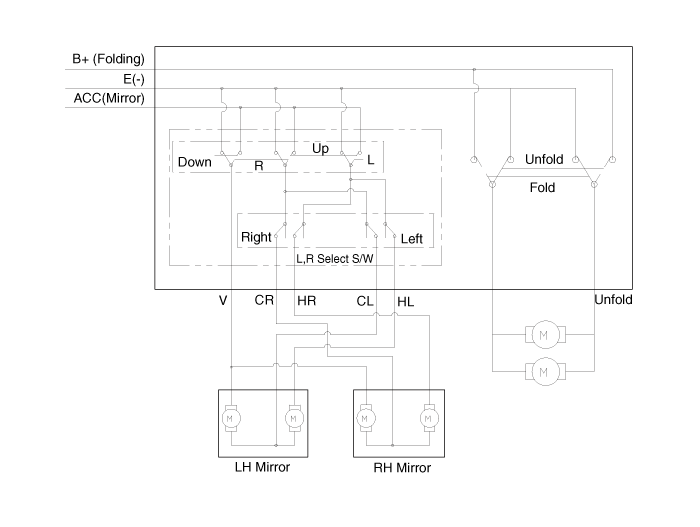

[Folding Mirror Type]

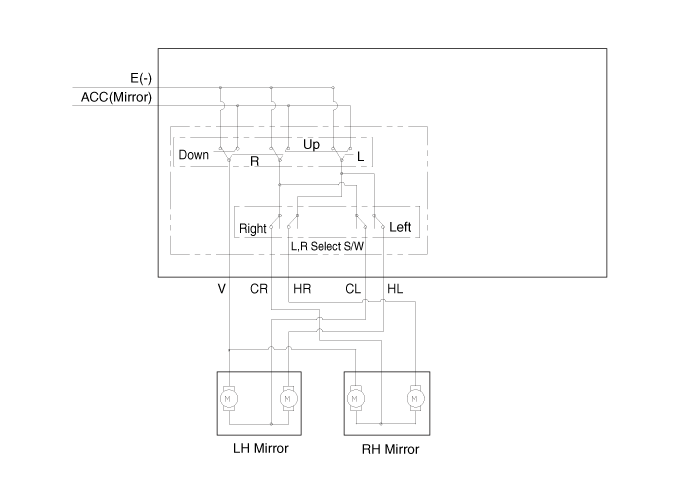

[Non-Folding Mirror Type]

Repair procedures

Inspection

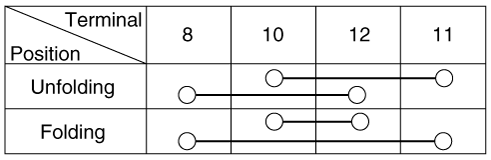

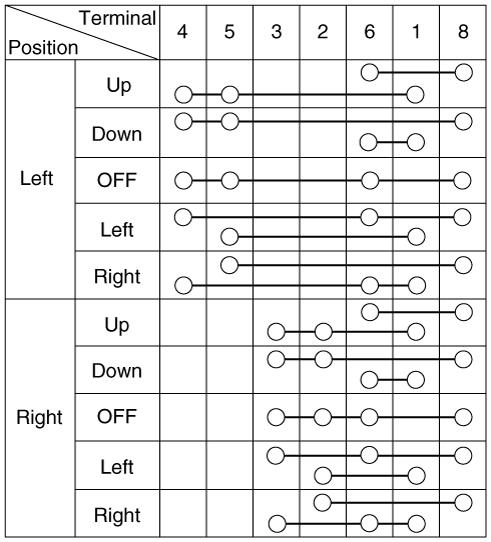

1.	Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch] [Power Folding Mirror Switch]

Removal

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front left door trim. (Refer to Body - "Front Door Trim")

3.	Remove the power mirror switch assembly (A) by pulling out both ends of the switch holders (B).

Installation

1.	Install the power mirror switch.

2.	Install the front door trim after connecting the connector.

3.	Connect the negative (-) battery terminal.
