| Removal and Installation |

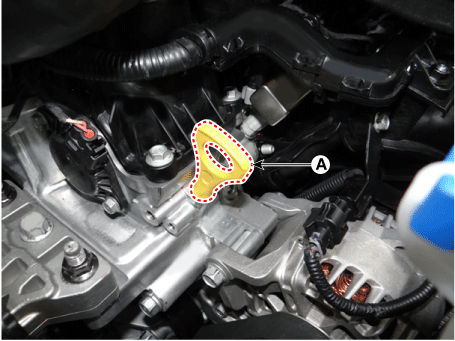

| 1. | Remove the oil level gauge (A).
|
| 2. | Remove the timing chain cover & oil pump assembly.
(Refer to Timing System - "Timing Chain Cover & Oil Pump Assembly")
|

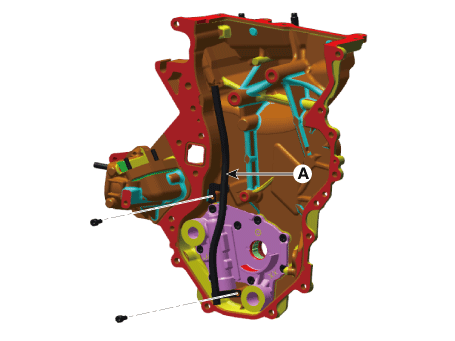

| 3. | Remove the oil level gauge guide (A).
|
| 4. | Install in the reverse order of removal. |
