Kia Picanto: Lubrication System / Oil Cooler

Kia Picanto JA 2017-2023 Service & Repair Manual / Engine Mechanical System / Lubrication System / Oil Cooler

Repair procedures
Removal
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
2.
Drain the coolant.
(Refer to Cooling System - "Coolant")
3.

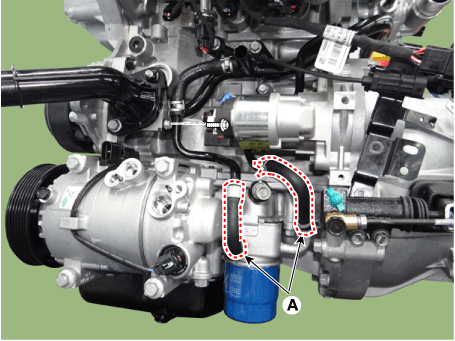

Disconnect the oil cooler coolant hoses (A).

4.
Remove the oil filter.
(Refer to Lubrication - "Engine Oil")
5.

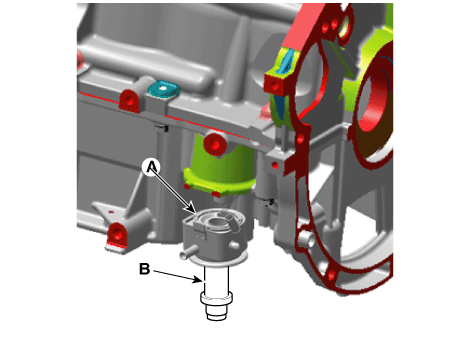

Loosen the mounting bolt (A) and remove the oil cooler assembly (B).

Installation
1.

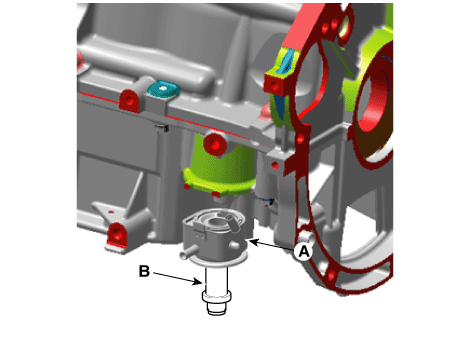

Apply a light coat of engine oil to the oil cooler packing surface (A), and then install the oil cooler with a fixing bolt (B).
Tightening torque :
44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)

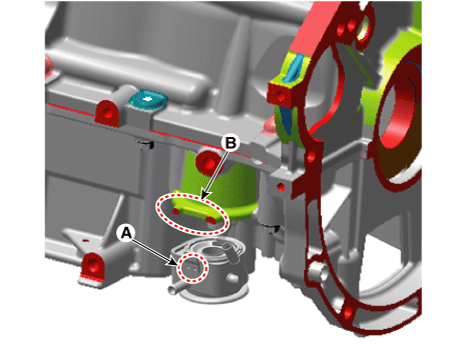

Fix position of oil cooler stopper (A) where oil cooler resists on ladder frame stopper (B).

2.
Apply a light coat of engine oil to the oil filter packing surface and then install the oil filter.
(Refer to Lubrication - "Engine Oil")
3.
Connect the oil cooler coolant hoses (A).

4.
Fill the radiator with coolant and check for leakage.
